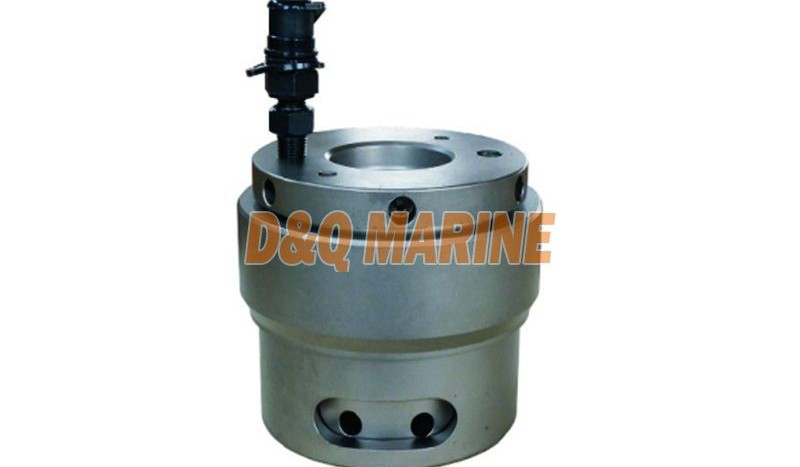

YLP Series-General Bolt Tensioner
China YLP Series-General Bolt Tensioner:
YLP Series-General Bolt Tensioner
Implementation of mechanical standard: GB/T 6390-2007
Note: working pressure 80 MPa, mechanical return.

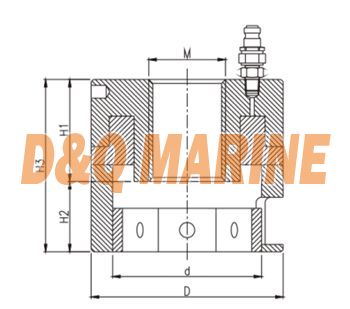

| Model | Thread | Tensile Force KN | Size(mm) | Pistion | |||||
| D | d | H1 | H2 | H3 | The Measure Of Area cm² | troke mm | |||
| YLP01 | M30X3.5 | 125 | 70 | 54 | 70 | 26 | 96 | 15.7 | 5 |
| YLPO2 | M33X3.5 | 140 | 76 | 60 | 72 | 28 | 103 | 17.3 | 5 |
| YLP03 | M36X4 | 150 | 83 | 66 | 74 | 30 | 109 | 18.9 | 5 |
| YLPO4 | M39X4 | 195 | 88 | 72 | 75 | 32 | 112 | 24.5 | 5 |
| YLPO5 | M42×4.2 | 210 | 94 | 77 | 76 | 34 | 116 | 26.5 | 5 |
| YLPO6 | M45×4.5 | 230 | 100 | 83 | 78 | 38 | 124 | 28.5 | 5 |
| YLP07 | M48×5 | 280 | 106 | 89 | 80 | 40 | 129 | 35.3 | 5 |
| YLPO8 | M52X5 | 300 | 112 | 94 | 82 | 45 | 134 | 37.6 | 5 |
| YLPO9 | M56X5.5 | 385 | 124 | 100 | 84 | 48 | 145 | 48 | 5 |
| YLP10 | M60×5.5 | 480 | 136 | 106 | 86 | 51 | 154 | 59.7 | 5 |
| YLP11 | M64X6 | 505 | 142 | 112 | 88 | 53 | 151 | 62.9 | 5 |
| YLP12 | M68×6 | 610 | 153 | 118 | 90 | 58 | 162 | 76 | 5 |
| YLP13 | M72X6 | 720 | 165 | 124 | 92 | 62 | 166 | 90.3 | 5 |
| YLP14 | M76X6 | 755 | 171 | 130 | 95 | 64 | 174 | 94.3 | 5 |
| YLP15 | M80X6 | 880 | 183 | 136 | 105 | 68 | 175 | 110 | 5 |
| YLP16 | M85×6 | 1020 | 195 | 143 | 110 | 72 | 189 | 127.2 | 5 |
| YLP17 | M90X6 | 1165 | 207 | 146 | 115 | 74 | 198 | 145.5 | 5 |
| YLP18 | M95X6 | 1320 | 218 | 157 | 120 | 80 | 218 | 165 | 5 |
| YLP19 | M100X6 | 1365 | 224 | 164 | 125 | 84 | 223 | 170.5 | 5 |
| YLP20 | M105X6 | 1580 | 228 | 175 | 135 | 88 | 197.3 | 5 | |
| YLP21 | M110X6 | 1760 | 254 | 181 | 145 | 95 | 220 | 5 | |
| YLP22 | M115X6 | 1800 | 260 | 188 | 155 | 98 | 225 | 5 | |
| YLP23 | M120X6 | 1910 | 271 | 194 | 165 | 100 | 238.8 | 5 | |
| YLP24 | M125X6 | 1960 | 277 | 198 | 175 | 105 | 245 | 5 | |
| YLP25 | M130X6 | 2165 | 289 | 210 | 185 | 110 | 270.4 | 5 | |
