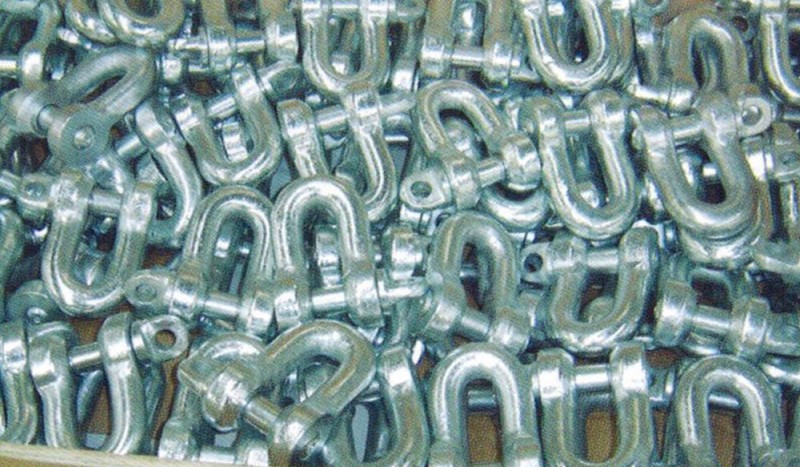

Shackles Type SE SB SC SD

Category: Ship Steel Block
Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
FOB Price: Get Latest Price Now
Warranty: 12 Months unless specified otherwise
Place of Origin: China
Request a Quote Print Page Print Page

We can supply according to your requirement.

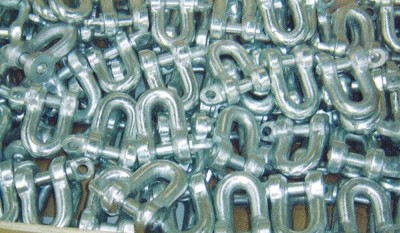

Shackles Type SE SB SC SD

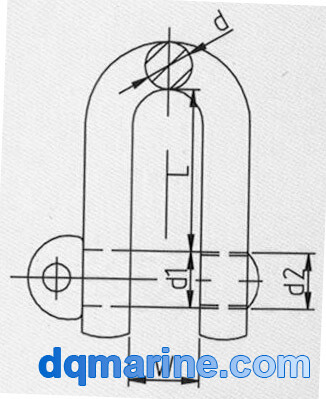

Technical Data:

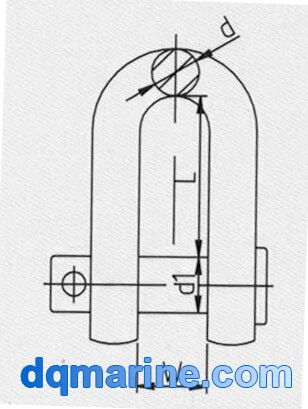

type d W L d1 S.W.LTON
mm
34 34 50 116 40 7.0
36 36 54 123 42 8.0
38 38 57 129 46 9.0
40 40 60 136 48 10.0
42 42 63 142 51 11.0
44 44 66 149 54 12.0
46 46 68 156 56 13.0
48 48 72 163 58 14.0
50 50 75 170 60 15.0
55 55 83 187 65 18.0
60 60 90 205 70 22.0
65 65 98 221 77 26.0
70 70 105 238 83 30.0
75 75 112 255 90 35.0
80 80 120 272 96 40.0
85 85 128 289 102 45.0
90 90 135 306 108 50.0

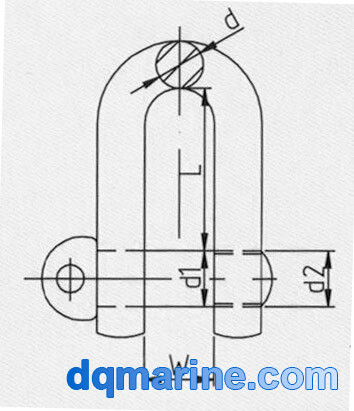

type d W L d1 d2 S.W.LTON
mm
20 20 31 68 24 M24 2.5
22 22 34 75 26 M24 3.0
24 24 39 81 3 M30 3.6
26 26 41 88 32 M30 4.2
28 28 43 95 34 M33 4.8
30 30 45 102 36 M36 5.4
32 32 48 109 38 M36 6.2
34 34 50 116 40 M39 7.0
36 36 54 123 42 M42 8.0
38 38 57 129 46 M45 9.0
40 40 60 136 48 M48 10.0
42 42 63 142 51 M48 11.0
44 44 66 149 54 M48 12.0
46 46 68 156 56 M48 13.0
48 48 72 163 58 M56 14.0
50 50 75 170 60 M56 15.0
55 55 83 187 65 M64 18.0
60 60 90 205 70 M64 22.0
65 65 98 221 77 M72 26.0
70 70 105 238 83 M80 30.0
75 75 112 255 90 M80 35.0
80 80 120 272 96 M90 40.0
85 85 128 289 102 M90 45.0
90 90 135 306 108 M100 50.0

type d W L d1 d2 S.W.LTON
mm
6 6 11 20 8 M8 0.2
8 8 14 27 10 M10 0.4
10 10 17 34 12 M12 0.6
12 12 20 40 15 M14 0.9
14 14 24 47 17 M16 1.2
16 16 26 54 19 M18 1.5
18 18 29 61 21 M20 2.0
20 20 31 68 24 M24 2.5
22 22 34 75 26 M24 3.0
24 24 39 81 30 M30 3.6
26 26 41 88 32 M30 4.2
28 28 43 95 34 M33 4.8
30 30 45 102 36 M36 5.4
32 32 48 109 38 M36 6.2
34 34 50 116 40 M39 7.0
36 36 54 123 42 M42 8.0
38 38 57 129 46 M45 9.0
40 40 60 136 48 M48 10.0

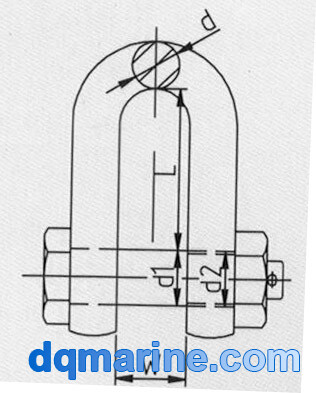

type d W L d1 d2 S.W.LTON
mm
10 10 20 34 12 M12 0.4
12 12 24 40 15 M14 0.6
14 14 28 47 17 M16 0.8
16 16 32 54 20 M20 1.0
20 20 40 68 24 M24 1.5
22 22 44 74 27 M27 2.0
24 24 48 81 29 M27 2.5
26 26 52 88 32 M30 3.0
28 28 56 95 34 M33 3.5
30 30 60 102 36 M36 4.0
34 34 68 115 42 M42 5.0
38 38 76 129 45 M45 6.0
40 40 80 136 48 M48 7.0
42 42 84 142 51 M48 8.0
48 48 96 163 58 M56 10.0
52 52 104 177 62 M56 12.0
58 58 116 198 68 M64 15.0

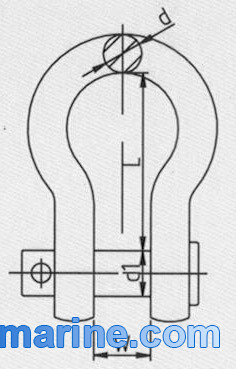

type d W L d1 S.W.LTON
mm
34 34 50 156 40 7.0
36 36 54 169 42 8.0
38 38 57 175 46 9.0
40 40 60 188 48 10.0
42 42 63 194 51 11.0
44 44 6 203 54 12.0
46 46 68 212 56 13.0
48 48 72 219 58 14.0
50 50 75 227 60 15.0
55 55 83 247 65 18.0
60 60 90 275 70 22.0
65 65 98 299 77 26.0
70 70 105 318 83 30.0
75 75 112 342 90 35.0
80 80 120 366 96 40.0
85 85 128 389 102 45.0
90 90 135 419 108 50.0

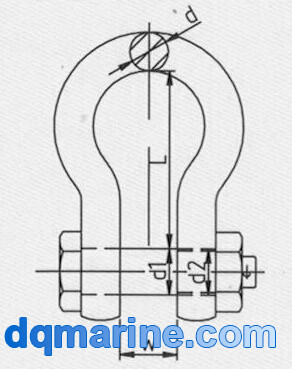

type d W L d1 d2 S.W.LTON
mm
6 6 12 32 8 M8 0.15
8 8 16 40 10 M10 0.3
10 10 20 48 12 M12 0.5
12 12 24 55 15 M14 0.7
14 14 28 63 17 M16 0.9
16 16 32 71 20 M20 1.2
18 18 36 89 21 M20 1.3
20 20 40 100 24 M24 1.8

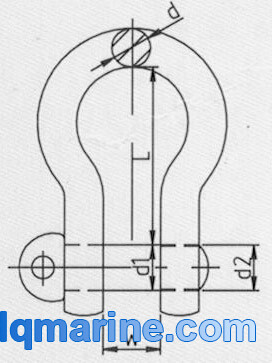

type d W L d1 d2 S.W.LTON
mm
20 20 31 92 24 M24 2.5
22 22 34 104 26 M24 3.0
24 24 39 111 30 M30 3.6
26 26 41 119 32 M30 4.2
28 28 43 127 35 M33 4.8
30 30 45 135 36 M36 5.4
32 32 48 148 38 M36 6.2
34 34 50 156 40 M39 7.0
36 36 54 169 42 M42 8.0
38 38 57 175 46 M45 9.0
40 40 60 188 48 M48 10.0
42 42 63 194 51 M48 11.0
44 44 66 203 54 M48 12.0
46 46 68 212 56 M48 13.0
48 48 72 219 58 M56 14.0
50 50 75 227 60 M56 15.0
55 55 83 247 65 M64 18.0
60 60 90 275 70 M64 22.0
65 65 98 299 77 M72 26.0
70 70 105 318 83 M80 30.0
75 75 112 342 90 M80 35.0
80 80 120 366 96 M90 40.0
85 85 128 389 102 M90 45.0
90 90 135 419 108 M100 50.0

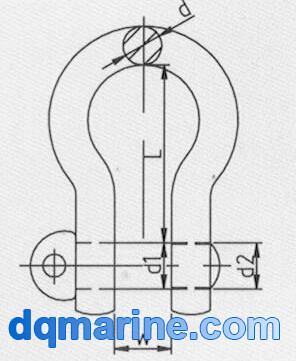

type d W L d1 d2 S.W.LTON
mm
6 6 11 32 8 M8 0.2
8 8 14 40 10 M10 0.4
10 10 17 48 12 M12 0.6
12 12 20 55 15 M14 0.9
14 14 24 63 17 M16 1.2
16 16 26 70 19 M18 1.5
18 18 29 84 21 M20 2.0
20 20 31 92 24 M24 2.5
22 22 34 104 26 M24 3.0
24 24 39 111 30 M30 3.6
26 26 41 119 32 M30 4.2
28 28 43 127 34 M33 4.8
30 30 45 135 36 M36 5.4
32 32 48 148 38 M36 6.2
34 34 50 156 40 M39 7.0
36 36 54 169 42 M42 8.0
38 38 57 175 46 M45 9.0
40 40 60 188 48 M48 10.0

Product Advantage:
1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
