Microcomputer Bearing Heater
China Microcomputer Bearing Heater:
Microcomputer Bearing Heater

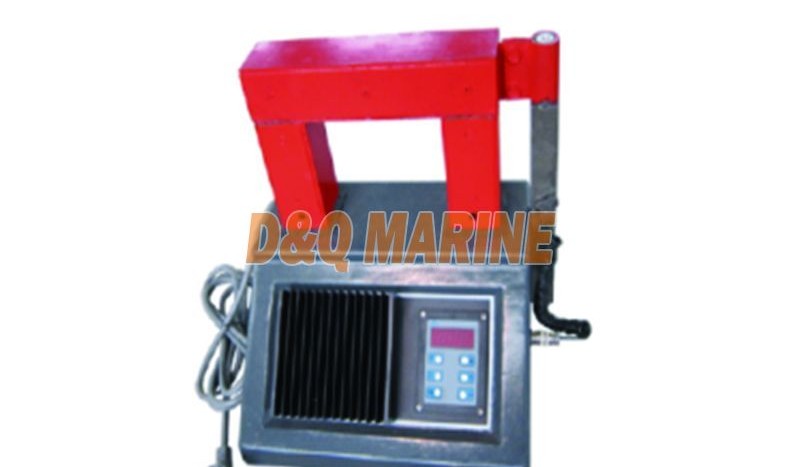

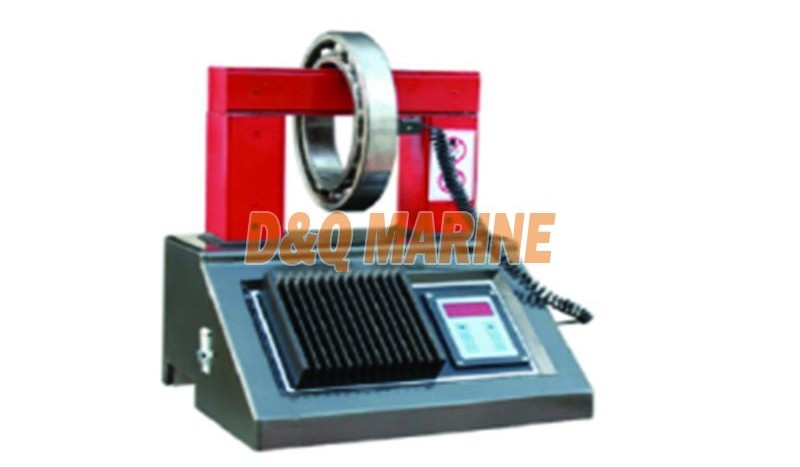

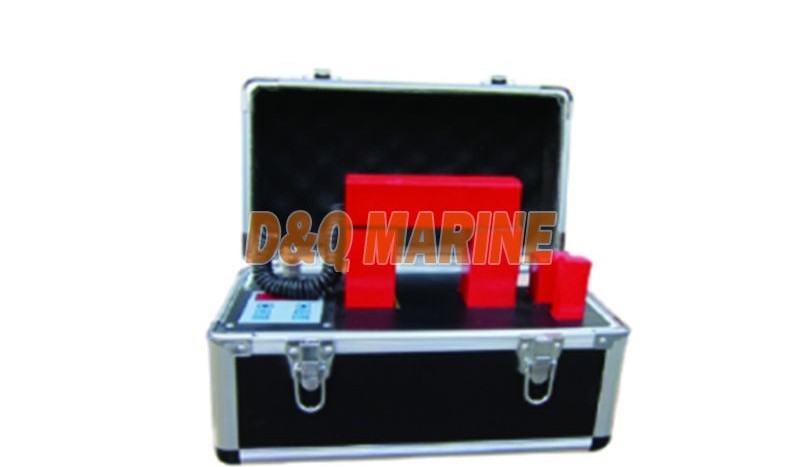

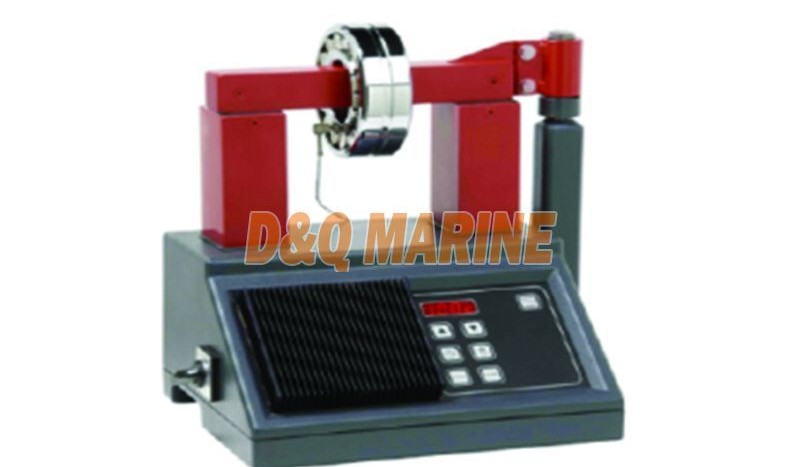

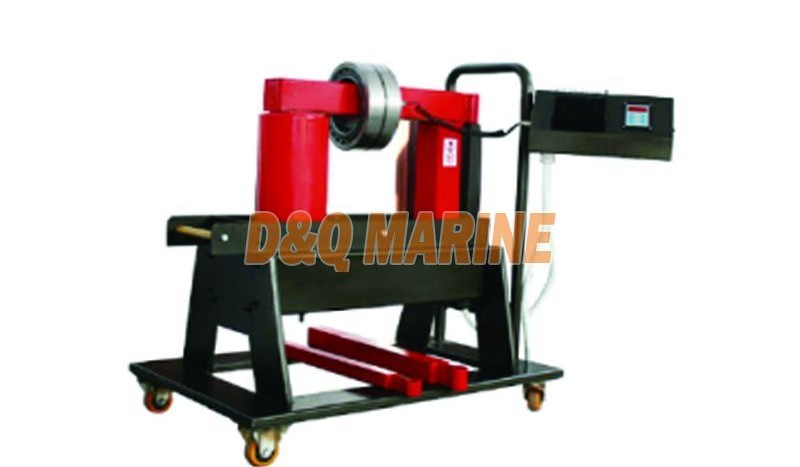

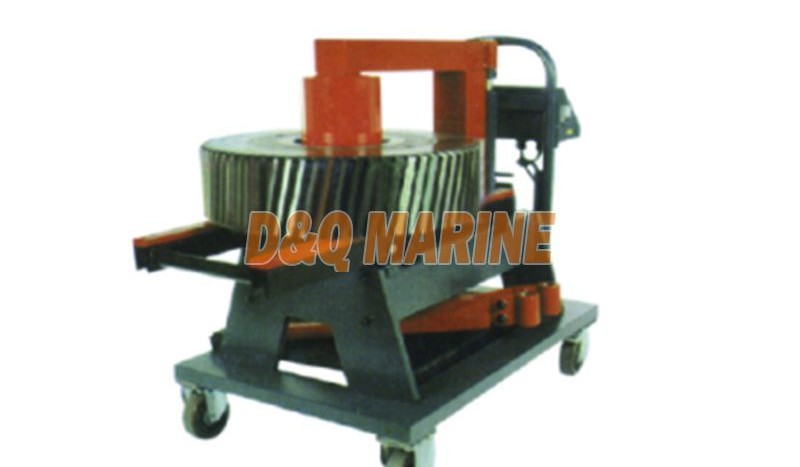

The specific models of ELD series developed and produced by our company are: ELDC-1 ELDC-3.6 ELDX-3.6 ELDX-8 ELDX-12 ELDX-24. Microcomputer induction heaters can heat workpieces such as bearings, gears, bushings,etc. The use of Maton hydraulic induction heaters can ensure fast, convenient and reliable installation of bearings, gears and other workpieces.
| Model | ELDC-1 | ELDC-3.6 | ELDX-3.6 | ELDX-8 | ELDX-12 | ELDX-24 | ELDC-40 | ||
| power | 1kw | 3.6kw | 3.6kw | 8kw | 12kw | 24kw | 40Kw | ||
| power supply | 220v | 220v | 220v | 380v | 380v | 380v | 380v | ||
| frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz | ||
| current | 6A | 16A | 16A | 20A | 30A | 60A | 100A | ||
| Rotary device | ——— | —— | Yes | Yes | Yes | Yes | ——— | ||
| Max. bearing weight | 10kg | 35kg | 35kg | 75kg | 150kg | 350kg | 750kg | ||
| Bearing inner diameter | 15-100mm | 30-160mm | 30-160mm | 60-250mm | 60-600mm | 85-700mm | 85-1000mm | ||
| Max.bearing outer diameter | 150mm | 340mm | 340mm | 480mm | 700mm | 900mm | 1400mm | ||
| Max.bearing width | 60mm | 140mm | 140mm | 210mm | 310mm | 400mm | 420mm | ||
| Max.heating temperature | 270℃ | 270℃ | 270℃ | 270℃ | 270℃ | 270℃ | 270℃ | ||
| Magnetic thermometer | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Digital Display | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| control method | Automatic temperature control,automatic time control,automatic demagnetization, automatic power adjustment | ||||||||
| Max.time (S) | 9999 | 9999 | 9999 | 9999 | 9999 | 9999 | 9999 | ||
| Digital Display | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| insulation device | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| power adjustment | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Automatic demagnetization | Yes | Yes | Yes | Yes | Yes | Yes | Yes | ||
| Heating rod size | 10, 20,40 | 20,30,40,50,60 | 20,30,40,50,60 | 40,50,70 | 40,60,80 | 60,80,100 | 60,80,100,150 | ||
| Host weight | 10kg | 50kg | 55kg | 65kg | 130kg | 180kg | 660kg | ||
