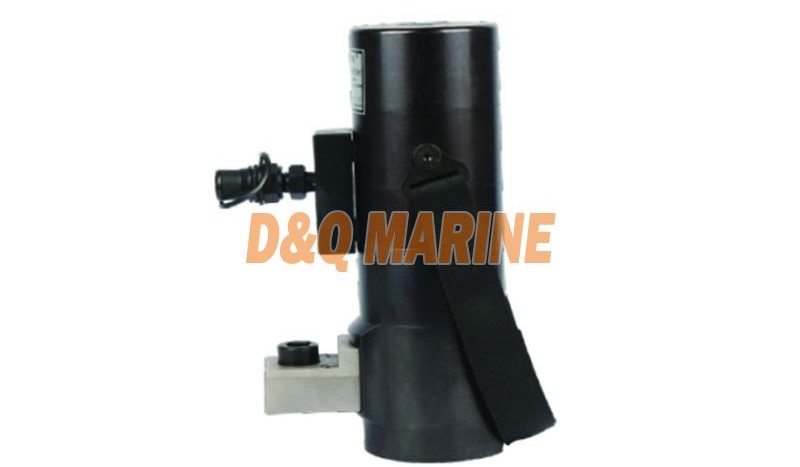

MSD Series-Single Stage Hydraulic Bolt Tensioner
China MSD Series-Single Stage Hydraulic Bolt Tensioner:
MSD Series-Single Stage Hydraulic Bolt Tensioner
It is portable, fast, efficient and accurate.
| Model | Bolt Specification M | The Edge of The Nut S | Tensile Force KN | Oil Cylinder Area mm² | Stroke mm | Outer Diameter of Oil Cylinder mm | Height mm | Maximum Pressure MPa | |
| MSD30.2.74 | 30X3.5 | 46 | 520 | 3855 | 8 | 74 | 218 | 135 | |
| MSD36.2.87 | 36X4 | 55 | 724 | 4827 | 10 | 87 | 263 | 150 | |
| MSD36.2.75 | 36X4 | 55 | 452 | 3016 | 8 | 75 | 201 | 150 | |
| MSD36.3.75 | 36X4 | 55 | 678 | 4524 | 8 | 75 | 255 | 150 | |
| MSD36C.2.96 | 36X4 | 55 | 670 | 4963 | 10 | 96 | 213 | 135 | |
| MSD36JG.2.82 | 36X4 | 55 | 667 | 4943 | 10 | 82 | 405 | 135 | |
| MSD39.2.94 | 39X4 | 60 | 870 | 5802 | 10 | 94 | 257 | 150 | |
| MSD42.2.108 | 42X4.5 | 65 | 1058 | 7057 | 10 | 108 | 292 | 150 | |
| MSD42.3.100 | 42X4.5 | 65 | 1190 | 8817 | 10 | 100 | 338 | 135 | |
| MSD48.2.122 | 48X5 | 75 | 1478 | 9858 | 12 | 122 | 324 | 150 | |
| MSD48.2.131 | 48X5 | 75 | 1539 | 10261 | 12 | 131 | 338 | 150 | |
| MSD56.2.138 | 56X5.5 | 85 | 1734 | 12847 | 12 | 138 | 372 | 135 | |
| MSD56L.2.141 | 56X5.5 | 85 | 1547 | 11459 | 10 | 141 | 285 | 135 | |
| MSD64.2.150 | 64X6 | 95 | 2011 | 14901 | 15 | 150 | 421 | 135 | |
| MSD64L2.151 | 64X6 | 95 | 1839 | 12265 | 10 | 151 | 321 | 150 | |
