Electric Lift Puller
China Electric Lift Puller:

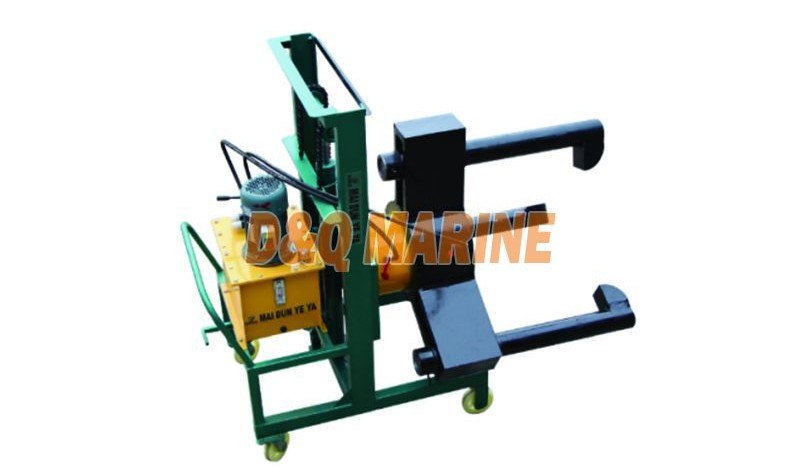

Electric Lift Puller
The lift-separated top-pulling multi-purpose machine is a new type of top-pulling multi-purpose tool. It has the advantages of reasonable structure, convenient operation, safe use and fast loading and unloading. This machine is widely used in factories, oil fields, ships, docks, railways, construction projects, tunnel operations and automobiles, tractors, scientific research,etc. Especially suitable for field operation without power supply. This machine is designed with reference to the loading and unloading forklift, with four steel universal wheels at the bottom,which is durable.
| Model | FBL-20 | FBL-30 | FBL-50 | FBL-100 | FBL-200 | FBL-300 | FBL-500 | |
| Lifting force(T) | 20 | 30 | 50 | 100 | 200 | 300 | 500 | |
| Working pressure(MPa) | 63 | 63 | 63 | 63 | 63 | 63 | 63 | |
| Maximum stroke(mm) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Pulling and unloading range(mm) | 300 | 400 | 500 | 600 | 700 | 800 | 900 | |
