40mm Hydraulic Combined Windlass
40mm Hydraulic Combined Windlass

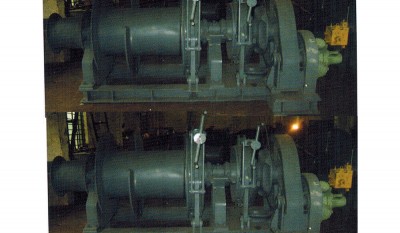

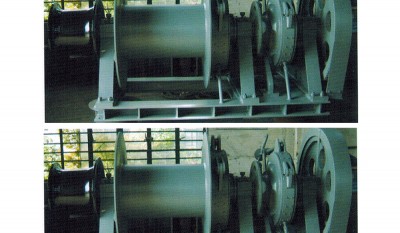

The hydraulic anchor windlass is installed on the main deck of the ship's first raft for the anchoring of the ship and for anchoring the tether.The abchor windlass is mainly composed of a base, a bracket, an anchor sprocket, a brake, a sprocket, a gearbox, an electric control system (except a manual windlass), an electric windlass has an electric motor, and a hydraulic windlass has a hydraulic pumping station.
Drawing
Technical specifications
| Chain Dia. (mm) | Working Load (KN) | Working Speed (m/min) | Mooring Pull (KN) | Mooring Speed (m/min) | Drum Capacity (mm×m) | Motor Power (KW) | Dimensions(mm) | Weight (ton) | |||||
| M2 | M3 | A | B | C | D | E | |||||||
| 32 | 44 | 49 | 9 | 30 | 12 | 40×140 | 18.5 | 1500 | 3460 | 5180 | 1450 | 1400 | 6.24 |
| 34 | 49 | 55 | 9 | 30 | 12 | 40×140 | 18.5 | 1500 | 3460 | 5180 | 1450 | 1400 | 6.24 |
| 36 | 55 | 62 | 9 | 30 | 12 | 40×140 | 18.5 | 1500 | 3460 | 5180 | 1450 | 1400 | 6.24 |
| 38 | 61 | 69 | 9 | 50 | 12 | 50×200 | 30 | 1600 | 3750 | 5540 | 1550 | 1600 | 7.32 |
| 40 | 68 | 76 | 9 | 50 | 12 | 50×200 | 30 | 1600 | 3750 | 5540 | 1550 | 1600 | 7.32 |
| 42 | 75 | 84 | 9 | 50 | 12 | 50×200 | 30 | 1600 | 3750 | 5540 | 1550 | 1600 | 7.32 |
| 44 | 82 | 92 | 9 | 60 | 12 | 50×200 | 30 | 1800 | 4150 | 6130 | 1750 | 1700 | 9.54 |
| 46 | 90 | 101 | 9 | 60 | 12 | 50×200 | 45 | 1800 | 4150 | 6130 | 1750 | 1700 | 9.54 |
| 48 | 98 | 109 | 9 | 60 | 12 | 50×200 | 45 | 1800 | 4150 | 6130 | 1750 | 1700 | 9.54 |
