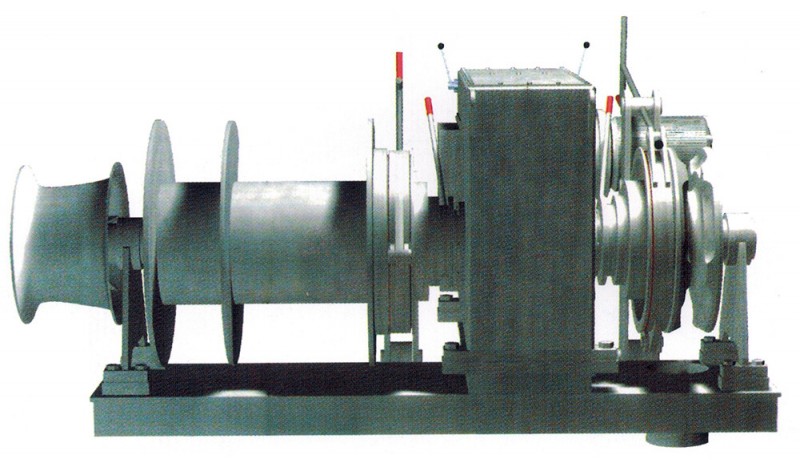

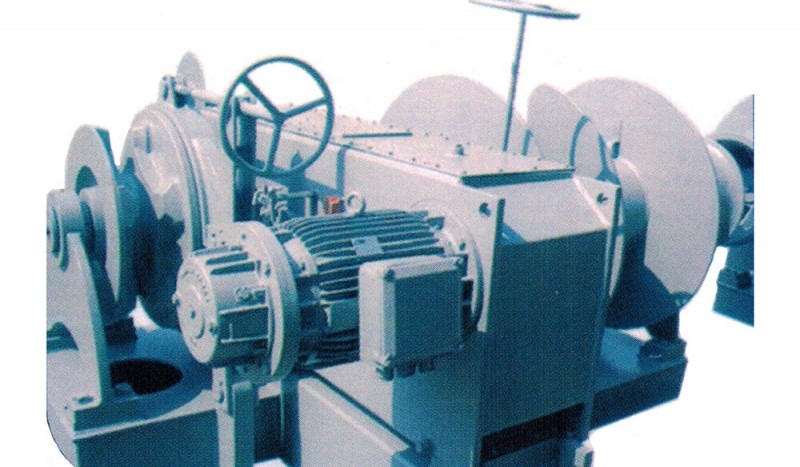

20T Electric combined anchor winch
20T Electric combined anchor winch
Electric winches are widely used in places where work is heavy and where traction is required. The motor of the single-roller electric winch drives the reel through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and turning operations, there are also winches for double reels and multi-roll units. A winch with a typical rated load of less than 10T can be designed as an electric winch.
Technical specifications
|
Anchor Part Nominal Pulling Force |
Anchor Part Break-out Force |
Mooring Part Nominal (Kn) |
Electric Installed Power (Kw) |
||
| U2 | U3 | U2 | U3 | ||
| 24.5 | 27,36 | 36.8 | 41,04 | 20 | 4.5 |
| 28.7 | 32,11 | 43.1 | 48,17 | 20 | 5.5 |
| 33.3 | 37,24 | 50 | 55,86 | 30 | 6 |
| 38.3 | 42,75 | 57.5 | 64,13 | 30 | 6.5 |
| 43.5 | 48,64 | 65.3 | 72,96 | 40 | 7.5 |
| 49.1 | 54,91 | 73.7 | 82,37 | 40 | 8 |
| 55.1 | 61,56 | 82.7 | 92,34 | 50 | 8.5 |
| 61.4 | 68,59 | 92.1 | 102,89 | 50 | 10 |
| 68.0 | 76,00 | 102 | 114,00 | 60 | 11.5 |
| 75.0 | 83,79 | 112.5 | 125,69 | 60 | 12.5 |
| 82.3 | 91,96 | 123.5 | 137,94 | 70 | 14 |
| 89.9 | 100,51 | 134.9 | 150,77 | 70 | 15 |
| 97.9 | 109,44 | 146.9 | 164,16 | 80 | 16.5 |
| 106.3 | 118,75 | 159.5 | 178,13 | 80 | 18 |
| 114.9 | 128,44 | 172.4 | 192,66 | 80 | 19.5 |
| 123.9 | 138,51 | 185.9 | 207,77 | 80 | 21 |
| 133.3 | 148,96 | 200 | 223,44 | 100 | 23 |
| 143.0 | 159,79 | 214.5 | 239,69 | 100 | 25 |
| 153.0 | 171,00 | 229.5 | 256,5 | 110 | 27 |
| 163.4 | 182,59 | 245.1 | 273,89 | 120 | 29 |
| 174.1 | 194,56 | 261.2 | 291,84 | 140 | 31 |
| 185.1 | 206,91 | 277.7 | 310,37 | 140 | 32.5 |
| 196.5 | 219,64 | 294.8 | 329,46 | 160 | 35 |
| 208.3 | 232,75 | 312.5 | 349,13 | 160 | 37 |
| 226.5 | 253,13 | 339.8 | 379,69 | 180 | 40 |
| 246.5 | 274,36 | 368.3 | 411,54 | 180 | 43 |
| 258.6 | 288,99 | 387.9 | 433,49 | 200 | 46 |
| 278.8 | 311,65 | 418.26 | 467,47 | 200 | 49 |
| 299.9 | 335,16 | 449.82 | 502,74 | 250 | 52 |
| 321.7 | 359,53 | 482.53 | 539,29 | 250 | 56 |
