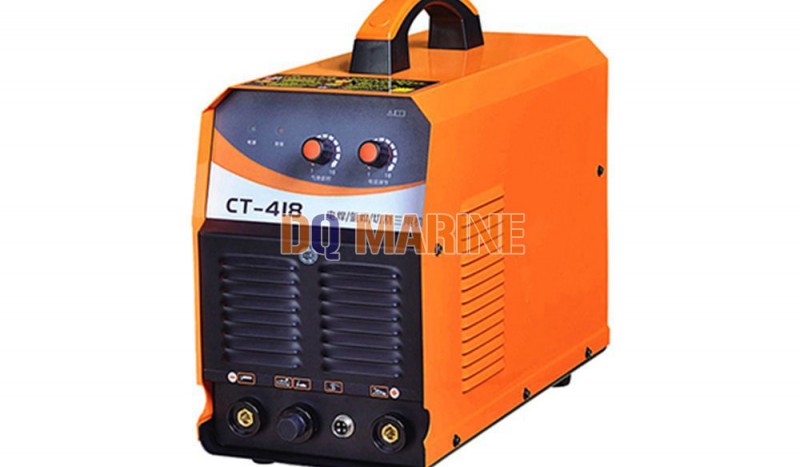

CT-418 Three Functions Welding and Cutting Machine
CT-418 Three Functions Welding and Cutting Machine Introduction
It can be used as electric welding, Argon arc welding, and cutting machine, three functions in one equipment, saving cost for equipment.
Automatic conversion make the operation easy and reliable.
Small size, light weight, convenient installation, easy to carry.
Updated circuit design, simple structure, advanced technology, can meet different metals.
Stable argon arc initiation, concentrated arc, can be used for different metals.
1.6-3.2mm welding rod can be used, easy for arc welding.
Air plasma cutting machine can cut the thickness less than 10mm.
Technical Parameter
| TYPE | CT-418 |
| Power Voltage (V) | AC 220V ± 15% |
| Frequency (HZ) | 50/60 |
| Rated Input Power (KVA) | 4.9/3.8/4.3 |
| Rated Output Voltage (V) (Electrical Welding) | 26 |
| Rated Output Voltage (V) (Argon Arc Welding) | 17.2 |
| Rated Output Voltage (V) (Cutting) | 94.4 |
| No-Load Voltage (V) (Electrical Welding) | 63 |
| No-Load Voltage (V) (Argon Arc Welding) | 63 |
| No-Load Voltage (V) (Cutting) | 250 |
| Scope Of Current Adjustment (A) (Electrical Welding) | 10-150 |
| Scope Of Current Adjustment (A) (Argon Arc Welding) | 10-180 |
| Scope Of Current Adjustment (A) (Cutting) | 20-36 |
| Duty Cycle (%) | 60 |
| No-Load Loss (W) | 40 |
| Overall Size (mm) | 427x204x385 |
| Suggested Air Pressure (KG) | 4 |
| Weight (KG) | 11.1 |
| Max Cutting Thickness (mm) | 10 |
| Welding Rod Diameter (mm) | 1.6-3.2 |
