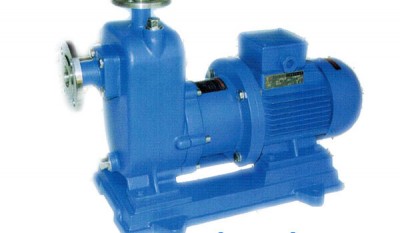

ZCQ Series Marine Self-priming Magnetic Pump
China ZCQ Series Marine Self-priming Magnetic Pump:
Modern type self-priming magnetic drive pump, self-priming pump with static seal instead of dynamic seal for the pump, the pump flow components in a completely sealed state, completely solve the other pump mechanical seal inevitable run, run, drip, leak of ills, pump body and the material flow components all adopted the corrosion resistance of stainless steel, corundum ceramic materials, such as the function of both type CQ magnetic drive pump, self-priming and set at a suit, without bottom valve and water, self-priming height of 4 meters.
ZCQ Series Marine Self-priming Magnetic Pump
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| ZCQ25-20-115 | 110 | 15 | 2900 | 1.1 |
| ZCQ32-20-115 | 110 | 15 | 2900 | 1.1 |
| ZCQ32-20-145 | 110 | 25 | 2900 | 1.1 |
| ZCQ40-32-132 | 180 | 20 | 2900 | 2.2 |
| ZCQ40-32-145 | 180 | 32 | 2900 | 4 |
| ZCQ50-40-145 | 240 | 25 | 2900 | 4 |
| ZCQ50-40-150 | 240 | 32 | 2900 | 4 |
| ZCQ50-30-140 | 220 | 25 | 2900 | 5.5 |
| ZCQ65-20-160 | 280 | 32 | 2900 | 5.5 |
| ZCQ65-50-145 | 450 | 20 | 2900 | 7.5 |
| ZCQ80-20-145 | 800 | 32 | 2900 | 7.5 |
| ZCQ80-50-160 | 800 | 32 | 2900 | 15 |
| ZCQ100-60-160 | 1500 | 32 | 2900 | 22 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
