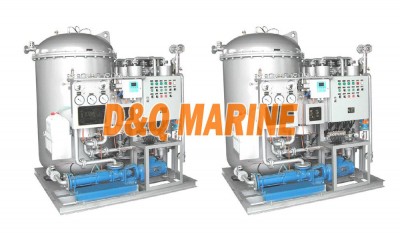

YWC-2.5m3 Marine oily water separator:
Description:
This device 15ppm Bilge Water Separator is a kind of environmental protection product designed based on International Marinetime Organization IMO MEPC.107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combine with black ferric oxide and surfactant.
Technical Data:
| YWC-2.5m3/h Marine Oily Water Separator | |
| Rating Capacity | 2.5m3/h |
| Power of Pump | 0.37kw |
| Electric Heater Power | 3kw |
| 15ppm Bilge Alarm | Included |
| Base(Channel Steel) |
#8 1900x1120mm |
| Height | 1900mm |
| Dry/Wet Weight | 1500/2800kg |
| Applicable Ship Vessel | 50-100KDWT |
| Certificate | CCS GL ABS BV DNV RS |
| Optional Electric System |
AC 380V/50Hz/3 phase AC 415V/50Hz/3 phase AC 440V/60Hz/3 phase AC 480V/60HZ/3 phase |
