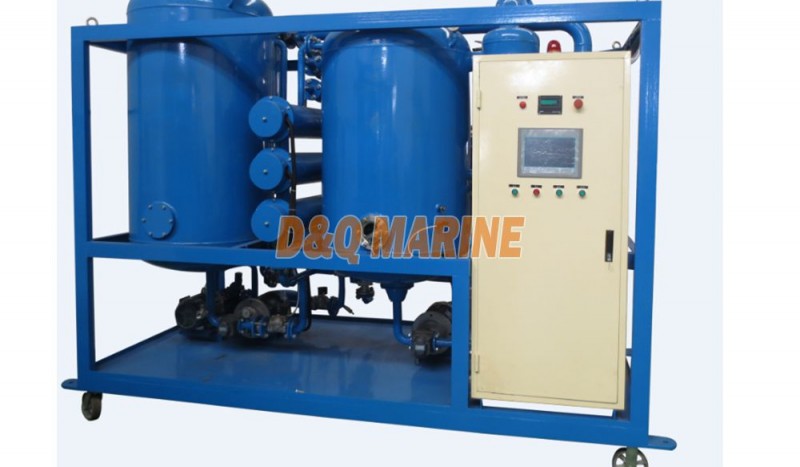

TYJ Series Frozen Machine Oil Purifier
Category:
Oil Purifier
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
TYJ Series Frozen Machine Oil Purifier:
TYJ series refrigeration oil filter:

The TYJ type refrigerant oil filter is especially suitable for the refrigerator compressor, air conditioning compressor, automobile air conditioner compressor, etc..

Technical features:

This device can not only deal with minerals, lipid lubricating oil, but also in the PAG class, polyalkylene glycol POE polyol and polyvinyl PVE lipids, many kinds of oil, and all kinds of air conditioners, refrigerators, water dispenser compressor oil.

2. It has strong ability to remove water, which is easy to remove trace water in oil. The utility model can effectively remove the peculiar smell caused by the small molecular substances in the oil, and can quickly separate the water molecules in the water oil which is synthesized in the water with strong hydrophilicity.

3. It uses a unique closed cycle vacuum analysis process to remove the water in the oil, to solve the problem of two pollution due to air pollution.

4. It double high vacuum film and film evaporation system, uniform distribution structure, can be used for cooling oil high viscosity, strong surface tension of various cooling oil, compressor oil dehydration purification treatment.

5. It has high precision high beta filter system, which can effectively deal with the mechanical impurities in the oil to improve the performance of the oil.

6. using special cooling oil, compressor oil can not be sealed with silicon fluoride, to prevent the sealing material of the two oil pollution.

7. After treatment indicators: mineral, ester moisture value of 10ppm below, the ether moisture value of 20ppm below, the water content of the following 80ppm.

8. high degree of automation, safe and reliable. The machine adopts infrared liquid level automatic control device, which realizes the separation of man and machine.

Technical data:

Item Unit TYJ-10 TYJ-20 TYJ-30 TYJ-50 TYJ-100
Flow Rate L/min 10 20 30 50 100
working vacuum Mpa -0.06~-0.095
working Preuusre Mpa ≤0.4
power / 380V/50HZ(or at user's option)
noise db(A) dB(A) ≤65~80(depend on user's requirement)
Fult-free working hours h ≥4000
continuous hours h ≥150
Heating power Kw 18 18 30 45 72
Total Power Kw 22 22 35 50 80
After filteration water content ppm 5-80(at user's option)
gas content % ≤0.1
granularity NAS ≤6 Stage
