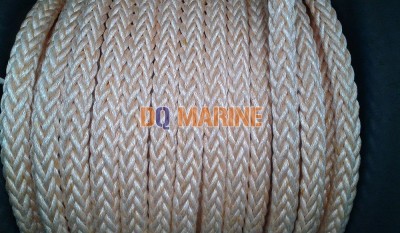

Twelve Strand Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Twelve Strand Rope:
China Twelve Strand Rope:

These products are produced through a special production process, and have advantages of excellent wear resistance, high strength, corrosion resistance, temperature change resistance, and seawater resistance.

It is mainly used in the shipbuilding, ocean transportation, national defense research, marine operations,ports, and oil exploration fields.

Main Performance:
Material Polyamide Multifilament Polyamide yarn Polypropylene multifilament Polypropylene Polyester Polypropylene and Polyester mixed
Density 1.14
non floating
1.14
non floating
0.91
floating
0.91
floating
1.27
non floating
0.95
floating
Melting point 215℃ 215℃ 165℃ 165℃ 260℃ 165℃/260℃
Abrasion resistance Very good Very good Medium Medium Good Good
UV resistance Very good Very good Medium Medium Good Good
Temperature resistance 120℃ Max 120℃ Max 70℃ Max 70℃ Max 120℃ Max 80℃ Max
Chemical resistance Very good Very good Good Good Good Good
Specification:

Chart 1

Specification Polyamide Multifilament Polyamide Yarn
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
20 2 1/2“ 247 81 247 70
24 3“ 355 114 355 101
28 3 1/2“ 484 152 484 133
32 4“ 632 196 632 169
36 4 1/2“ 800 245 800 210
40 5“ 987 300 987 253
44 5 1/2“ 1190 358 1190 303
48 6“ 1420 420 1420 355
52 6 1/2“ 1670 489 1670 413
56 7“ 1930 561 1930 473
60 7 1/2“ 2220 640 2220 539
64 8“ 2530 723 2530 608
72 9“ 3200 905 3200 759
80 10“ 3950 1102 3950 928
88 11“ 4780 1326 4780 1106
96 12“ 5690 1561 5690 1301
104 13“ 6670 1816 6670 1556
112 14“ 7740 2091 7740 1775
120 15“ 8880 2387 8880 2027
128 16“ 10100 2703 10100 2296
136 17“ 11400 3040 11400 2584
144 18“ 12800 3386 12800 2889
160 20“ 15800 4141 15800 3565

Chart 2

Specifications Polypropylene Multifilament Polypropylene
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
20 2 1/2“ 189 64 180 58
24 3“ 273 89 260 81
28 3 1/2“ 373 118 355 107
32 4“ 483 148 460 135
36 4 1/2“ 614 186 585 169
40 5“ 756 226 720 205
44 5 1/2“ 924 271 880 246
48 6“ 1092 315 1040 286
52 6 1/2“ 1281 364 1220 331
56 7“ 1491 416 1420 378
60 7 1/2“ 1712 476 1630 433
64 8“ 1943 539 1850 490
72 9“ 2457 676 2340 615
80 10“ 3045 832 2900 756
88 11“ 3686 998 3510 907
96 12“ 4379 1178 4170 1071
104 13“ 5145 1351 4900 1228
112 14“ 5985 1560 5700 1418
120 15“ 6825 1791 6500 1628
128 16“ 7770 2022 7400 1838
136 17“ 8820 2276 8400 2069
144 18“ 9870 2540 9400 2309
160 20“ 12100 3112 11521 2829

Chart 3

Specifications Polyester Polypropylene And Polyester Mixed rope
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
20 2 1/2“ 303 64 194 70
24 3“ 437 91 279 98
28 3 1/2“ 594 122 380 133
32 4“ 778 157 497 170
36 4 1/2“ 982 194 629 214
40 5“ 1215 240 776 262
44 5 1/2“ 1468 285 939 314
48 6“ 1750 336 1110 371
52 6 1/2“ 2050 392 1320 432
56 7“ 2380 448 1520 499
60 7 1/2“ 2730 499 1750 569
64 8“ 3110 579 1990 644
72 9“ 3930 721 2520 805
80 10“ 4850 884 3110 982
88 11“ 5870 1061 3750 1183
96 12“ 6990 1255 4470 1397
104 13“ 8200 1448 5260 1622
112 14“ 9500 1652 6050 1877
120 15“ 10900 1902 6980 2142
128 16“ 12400 2152 7950 2417
136 17“ 14000 2448 8950 2713
144 18“ 15700 2703 10100 3029
160 20“ 19400 3335 12500 3703
