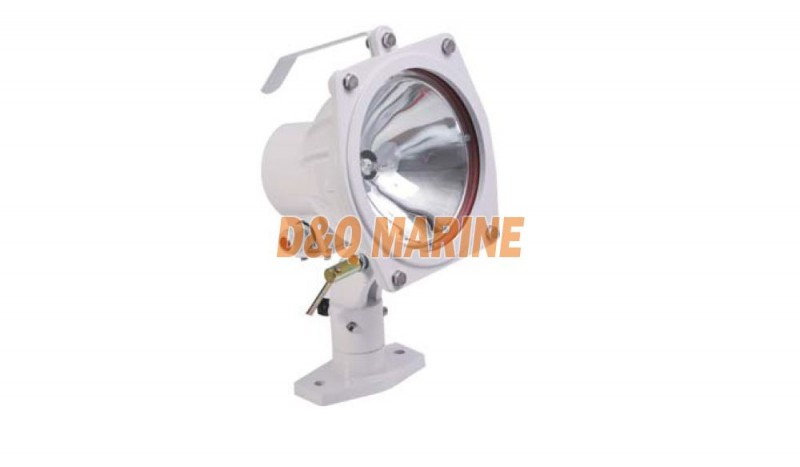

TG8 Spot Light
The scope of application
The TG8 Spot Light is designed to use for illumination in ship for searching, navigation at night, lifesaving, underwater operation etc.
Products feature
1. Easy to replace the bulbs.
2. The body of light is made of Aluminum alloy by molded compression, with the feature of firm in structure, corrosion resistance and light weight.
3. with the device of shock proof and prevent loosing.
4. The body of light can be rotated 360 degree in horizontal and adjusted 120 degree in pitch.
5. Adopt tungsten halogen bulb with the feature of good coloring, high efficiency, and longer life 2000 hours.
6. The cable outside diameter is Φ10～Φ12mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
4. Approved by China Classification Society (CCS).
Installation
TG8 Spot Light Specification
| Type | TG8 | |
| Power(W) | 100/200 | |
| Voltage(V) | 12V/24V | |
| Lamp Holder | G6.35 | |
| Llluminant | Tungsten Halogen Light | |
| Luminous Flux(Lm) | 2000/4500 | |
| Protection Class | IP56 | |
| Material | Aluminum Alloy | |
| Weight( Kg) | 4.1 | |
