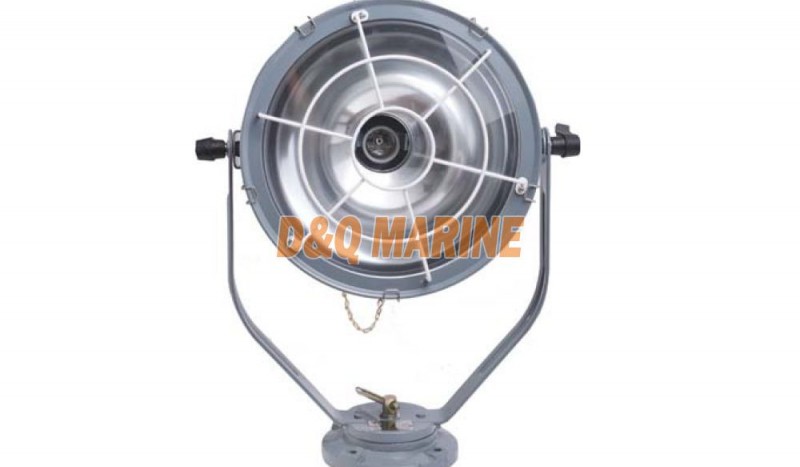

TG1B/TG2B Spot Light
The scope of application
This product is designed to use for illumination in ship, port, wharf, station and square etc.
Products feature
1. Easy to replace the bulbs for light.
2. The body of light is made of good quality steel by compression molding.
3. The shade adopt toughed safety glass.
4. The reflector has high reflectivity after chrome-plating and polishing processing.
5. The body of light can be rotated 360 degree in horizontal and adjusted 120 degree in pitch.
6. The cable outside diameter is Φ9～Φ11mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
4. Approved by China Classification Society (CCS).
Note: A means without protective cover, B means with protective cover.
Installation
TG1B/TG2B Spot Light Specification
| Type | TG1A/B | TG2A/B |
| L1(mm) | 460 | 526 |
| L2(mm) | 586 | 670 |
| L3(mm) | 345 | 364 |
| Power(W) | 300 | 500 |
| Voltage(V) | 220V | |
| Lamp Holder | E40 | |
| Llluminant | Incandescent Lamp | |
| Luminous Flux(Lm) | 4610 | 8300 |
| Protection Class | IP56 | |
| Weight( Kg) | 10 | 11.8 |
