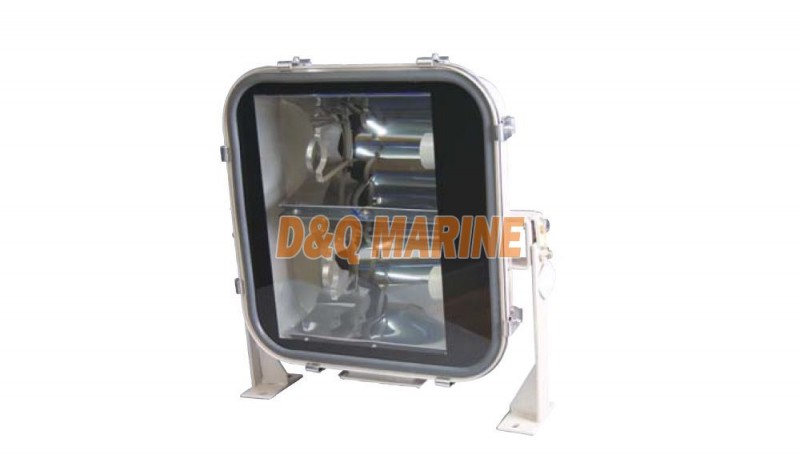

TG19 Spot Light
Category:
Spot Lights
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
TG19 Spot Light:
The scope of application
This product is designed to use for illumination as flood lighting at all kinds of ship, dock, port and wharf, storage yard and gym etc. Outdoor workplace like above.
Products feature
1. Easy to replace the bulbs.
2. The body of light is made of good quality stainless steel material by compression molding with excellent corrosion resistance.
3. The shade adopt toughened glass.
4. The body of light can be adjusted 90 degree up and 45 degree down.
5. High-pure aluminum reflector with perfect reflective effect.
6. The cable outside diameter is Φ10~Φ14mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
Installation

Ballast Box

TG19 Spot Light Specification

Type Voltage(V) Llluminant Power(W) Luminous Flux(Lm) Weight(Kg) Remark
TG19 220V/50HZ 220V/60HZ Tungsten Halogen Lamp(Type JTT) 2*500 2*8500 13.7
2*1000 2*2200
220V/50HZ 220V/60HZ 110V/60HZ HP Sodium Lamp 2*250 2*26000 13.9 With Ballast Box
2*400 2*4700
Metal Halide Lamp 2*250 2*20500
2*400 2*36000
TG19 Integration 220V/50HZ 220V/60HZ HP Sodium Lamp 2*250 1*26000 15.9 Ballast Inside of light
220V/60HZ 1*400 1*47000 16.8
110V/60HZ 18.7
220V/50HZ 220V/60HZ Metal Halide Lamp 2*250 1*20500 15.9
220V/60HZ 1*400 1*36000 16.7
110V/60HZ 18.7
