SOW Series Marine Single Stage Suction Pump:
China SOW Series Marine Single Stage Suction Pump:
SOW series single stage double suction pump system level in the volute centrifugal pump, mainly used for conveying the temperature is not higher than 105 ℃ water or the physical and chemical properties similar to water in the liquid.It is suitable for pumping station, power station, circulating water for air conditioning, hot water circulation for heating, fire fighting system, ship, etc.

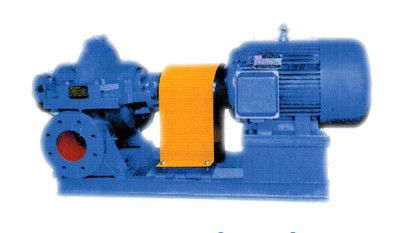

SOW Series Marine Single Stage Suction Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 125-380（I） | 309.6 | 90 | 1450 | 75 |
| 125-380 | 277.2 | 75 | 1450 | 55 |
| 125-480（I） | 327.6 | 100 | 1450 | 110 |
| 125-480 | 293.4 | 78 | 1450 | 90 |
| 125-280（I） | 442.8 | 62 | 1450 | 37 |
| 125-280 | 396 | 50 | 1450 | 30 |
| 150-350（I） | 446.4 | 40 | 1450 | 75 |
| 150-350 | 406.8 | 36 | 1450 | 55 |
| 150-450（I） | 514.8 | 95 | 1450 | 132 |
| 150-450 | 439.2 | 75 | 1450 | 110 |
| 150-570（I） | 583.2 | 63 | 1450 | 250 |
| 150-570 | 536.4 | 46 | 1450 | 200 |
| 200-340（I） | 694.8 | 45 | 1450 | 75 |
| 200-340 | 637.2 | 36 | 1450 | 75 |
| 200-410（I） | 709.2 | 65 | 1450 | 132 |
| 200-410 | 648 | 54 | 1450 | 110 |
| 200-530（I） | 817.2 | 39 | 1450 | 280 |
| 200-530 | 734.4 | 30.5 | 1450 | 250 |
| 200-660（I） | 792 | 24 | 1450 | 450 |
| 200-660 | 720 | 20.3 | 1450 | 400 |
| 250-390（I） | 1051.2 | 14 | 1450 | 160 |
| Also have bigger pumps, pls contact us for more information. | ||||
