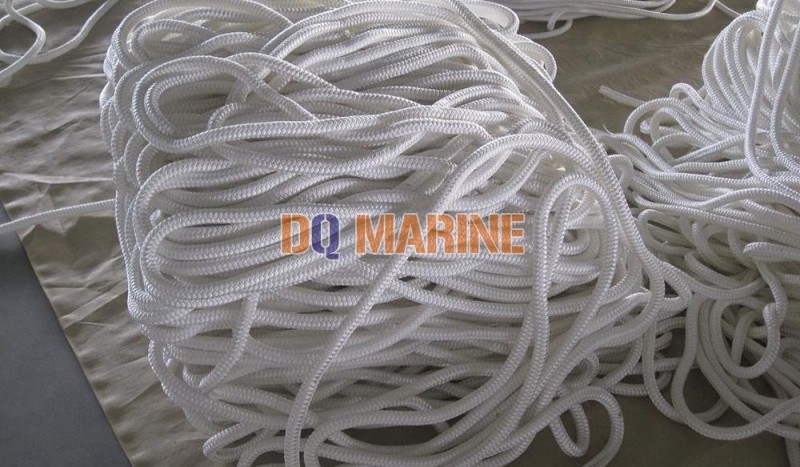

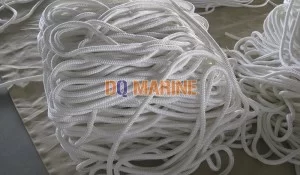

Sixteen Strand Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Sixteen Strand Rope:
China Sixteen Strand Rope:

Its special braied structure and technology craft rise up the utilization rate of strength of fiber thus to make the rope have advantages of low elongation,wearing resistance,smooth and pliable tough provides ideal product for special requirement for customers.

Mainly used in shipbuilding,petroleum drilling,national defense,military industry as well as loading and unloading in harbors.

Main Performance:

Material Polyamide Multifilament Polyamide yarn Polypropylene multifilament Polyester
Density 1.14
non floating
1.14
non floating
0.91
floating
1.27
non floating
Melting point 215℃ 215℃ 165℃ 260℃
Abrasion resistance Very good Very good Medium Good
UV resistance Very good Very good Medium Good
Temperature resistance 120℃ Max 120℃ Max 70℃ Max 120℃ Max
Chemical resistance Very good Very good Good Good
Parameter Table:

Chart 1

Specification Polyamide Multifilament Polyamide Yarn
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
20 2 1/2“ 247 87 247 73
24 3“ 355 123 355 106
28 3 1/2“ 484 164 484 140
32 4“ 632 211 632 177
36 4 1/2“ 800 264 800 220
40 5“ 987 323 987 265
44 5 1/2“ 1190 386 1190 318
48 6“ 1420 453 1420 372
52 6 1/2“ 1670 527 1670 432
56 7“ 1930 605 1930 495
60 7 1/2“ 2220 690 2220 564
64 8“ 2530 780 2530 637
72 9“ 3200 976 3200 795
80 10“ 3950 1188 3950 972

Chart 2

Specifications Polypropylene Multifilament Polester
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN
20 2 1/2“ 189 69 303 76
24 3“ 273 96 437 108
28 3 1/2“ 373 127 594 143
32 4“ 483 160 778 184
36 4 1/2“ 614 201 982 231
40 5“ 756 243 1215 283
44 5 1/2“ 924 292 1468 339
48 6“ 1092 339 1750 400
52 6 1/2“ 1281 393 2050 466
56 7“ 1491 449 2380 538
60 7 1/2“ 1712 513 2730 614
64 8“ 1943 581 3110 694
72 9“ 2457 729 3930 868
80 10“ 3045 897 4850 1059
