SG Series Pipeline Pump
China SG Series Pipeline Pump:
This series of pipeline pump is a novel pump developed for pipeline integral pressure conveying and solving the problem of too low pipeline pressure.Due to the use of advanced mechanical seal, motor spindle directly installed impeller, so high efficiency, low power consumption, compact structure, small size, light weight, easy installation and other characteristics, and according to the head and flow needs series and parallel use.

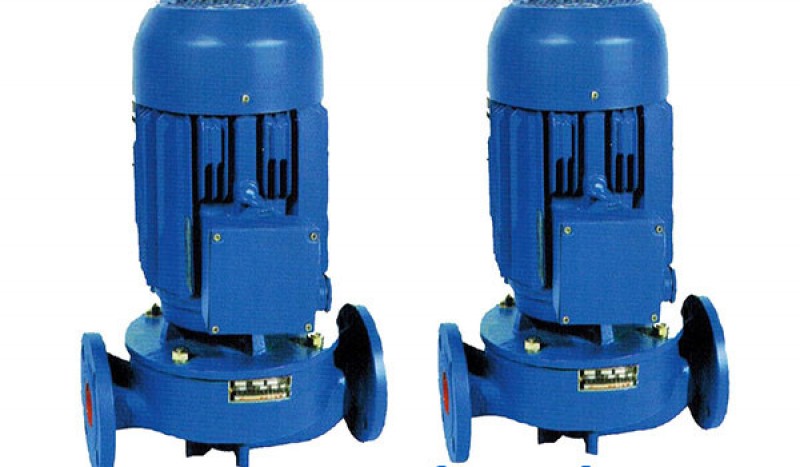

SG Series Pipeline Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 15SG0.6-5 | 0.6 | 5 | 2900 | 0.04 |
| 15SG1.8-10 | 1.8 | 10 | 2900 | 0.12 |
| 20SG2-8 | 2 | 8 | 2900 | 0.12 |
| 20SG3-14 | 3 | 14 | 2900 | 0.25 |
| 20SG3-30 | 3 | 30 | 2900 | 0.72 |
| 25SG2.5-15 | 2.5 | 15 | 2900 | 0.25 |
| 25SG4-20 | 4 | 20 | 2900 | 0.72 |
| 25SG3-30 | 3 | 30 | 2900 | 0.75 |
| 32SG5-20 | 5 | 20 | 2900 | 0.75 |
| 40SG5-8 | 5 | 8 | 2900 | 0.25 |
| 40SG6-20 | 6 | 20 | 2900 | 0.72 |
| 50SG10-7.5 | 10 | 7.5 | 2900 | 0.75 |
| 50SG10-15 | 10 | 15 | 2900 | 0.75 |
| 25SG4-20 | 4 | 20 | 2900 | 0.75 |
| 25SG3-30 | 3 | 30 | 2900 | 0.75 |
| 25SG6.5-30 | 6.5 | 30 | 2900 | 0.75 |
| 25SG10-50 | 10 | 50 | 2900 | 0.75 |
| 32SG8-30 | 5 | 20 | 2900 | 1.5 |
| 32SG15-40 | 8 | 30 | 2900 | 4 |
| 32SG12-50 | 15 | 30 | 2900 | 0.75 |
| 32SG14-80 | 12 | 50 | 2900 | 1.5 |
| Also have bigger pumps, pls contact us for more information. | ||||
