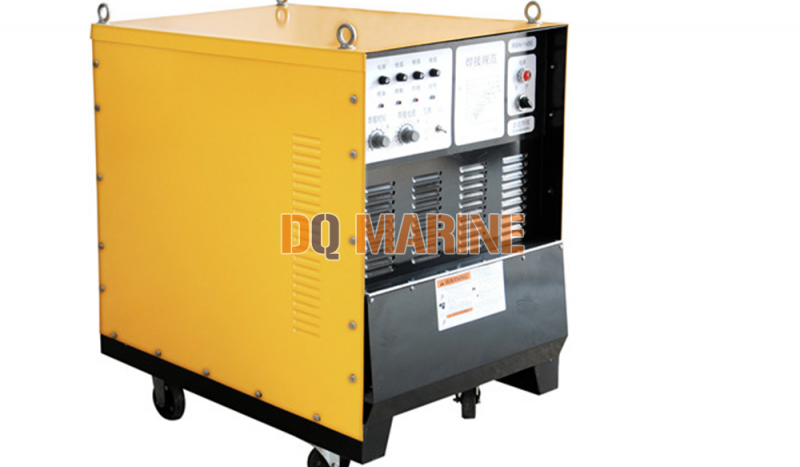

RSN-2000A Arc Stud Welding Machine
RSN-2000A Arc Stud Welding Machine Introduction
The main power of steel structure and bridge stud welding, welding torch adopts advanced damping power optical non-contact control technology, long service life, can work continuously for a long time, stable and excellent welding performance, and high reliability.
Product Technical Parameter
| TYPE | RSN-2000A |
| Power Voltage | Standard Three-phase 220V 50/60Hz |
| Standard Three-phase 345V 50/60Hz | |
| Standard Three-phase 380V 50/60Hz | |
| Standard Three-phase 415V 50/60Hz | |
| Standard Three-phase 440V 50/60Hz | |
| Input Power With Different Duty Cycle | 156KVA (5%) |
| 46KVA (60%) | |
| 30KVA (100%) | |
| Max Working Current | 2000A |
| Welding Time | 0.01-1.2s (Continuous Adjustment) |
| Stud Diameter | Ф5mm-Ф22mm |
| Protection Type | Procelain Protection |
| Working Efficiency | 50 Ф5 mm stud /min |
| 3 Ф22 mm stud /min | |
| Weight | 270KG |
