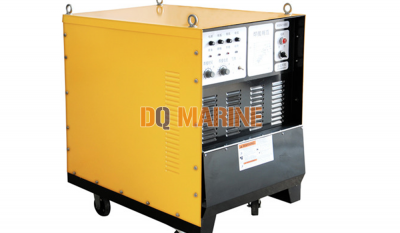

RSN-1450 Arc Stud Welding Machine:
RSN-1450 Arc Stud Welding Machine Introduction
It adopts the German advanced electrical control system, Belong to the RSN series, it has powerful functions, can weld almost all the stud, with long or short cycle time. Can provide porcelain Ring Protection or gas shielded protection.
Product Technical Parameter
| TYPE | RSN-1450 |
| Power Voltage | Standard Three-phase 220V 50/60Hz |
| Standard Three-phase 345V 50/60Hz | |
| Standard Three-phase 380V 50/60Hz | |
| Standard Three-phase 415V 50/60Hz | |
| Standard Three-phase 440V 50/60Hz | |
| Input Power With Different Duty Cycle | 112KVA (5%) |
| 33KVA (60%) | |
| 25KVA (100%) | |
| Max Working Current | 1450A |
| Welding Time | 0.01-1s (Continuous Adjustment) |
| Stud Diameter | Ф3mm-Ф16mm |
| Protection Type | Procelain Ring Protection / Gas Shielded |
| Working Efficiency | 49 Ф5 mm stud /min |
| 3 Ф16 mm stud /min | |
| Weight | 200KG |
