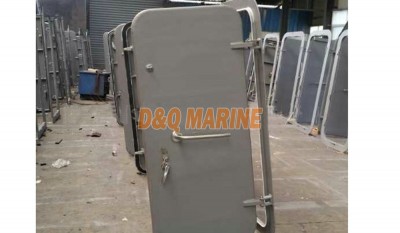

Quick Open and Close Weathertight Steel Door Without Back Plate:
Quick Open and Close Weathertight Steel Door Without Back Plate:
| Code of standard |
Size of Doorway BxHxR |
Size of
B.H.Opening B1xH1xR1 |
Size of Outline B2xH2xR2 |
Thickness of Door |
Weight KG |
|
| 6mm | 8mm | |||||
| 1050 | 1000x500xR100 | 1100X600 R150 | 1200X700XR150 | 6 or 8 | 86 | 98 |
| 1260 | 1200x600xR100 | 1300X700XR150 | 1400X800XR150 | 6 or 8 | 99 | 121 |
| 1460 | 1400x600xR100 | 1500X700XR150 | 1600X800XR150 | 6 or 8 | 120 | 138 |
| 1475 | 1400x750xR100 | 1500X850XR150 | 1800X950XR150 | 6 or 8 | 132 | 154 |
| 1490 | 1400x900xR100 | 1500X1000XR150 | 1600X1000XR150 | 6 or 8 | 145 | 175 |
| 1660 | 1600x600xR100 | 1700X700XR150 | 1800X800XR150 | 6 or 8 | 126 | 144 |
| 1675 | 1600x750xR100 | 1700X850XR150 | 1800X950XR150 | 6 or 8 | 147 | 172 |
| 1690 | 1600x900xR100 | 1700X1000XR150 | 1800X1100XR150 | 6 or 8 | 163 | 191 |
