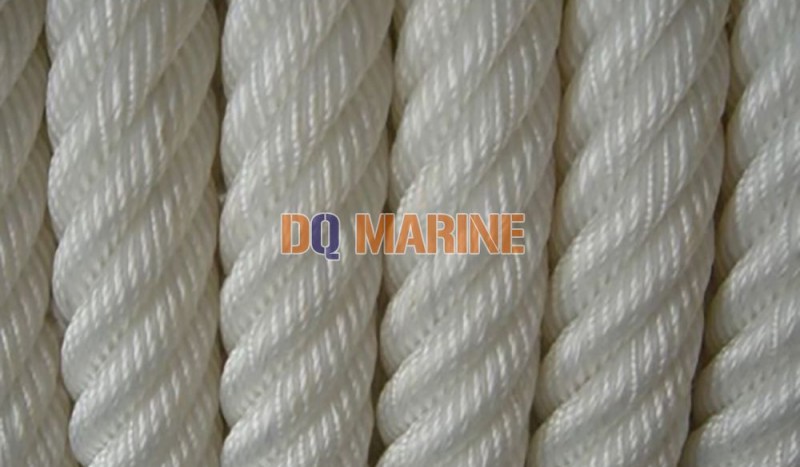

Nylon Single Filament 6 Ply Composite Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Nylon Single Filament 6 Ply Composite Rope:
China Nylon Single Filament 6 Ply Composite Rope:

Processed by special technology,it has superior wearing resistance,which is double than that of normal chemical-fiber ropes and cables therefore it has been widely used in mooring and towing of ships and vessels. The product are mainly used in fields of ocean transportation,heavy industry,shipbuilding,petroleum survey and harbor operation etc.

Main Performance:
Material Polyamide Multifilament/Nylon Monofilament Polypropylene Multifilament/Nylon Monofilament Polyester Multifilament/Nylon Monofilament
Density 1.14
non floating
0.98
floating
1.22
non floating
Melting point 215℃ 165℃ 260℃
Abrasion resistance Very good Good Very good
UV resistance Very good Medium Good
Temperature resistance 120℃ Max 70℃ Max 120℃ Max
Chemical resistance Very good Good Good
Parameter Table:
Specifications Polyamide Multifilament/Nylon Monofilament Polypropylene Multifilament/Nylon Monofilament Polyester Multifilament/Nylon Monofilament
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
mm Inch Ktex KN Ktex KN Ktex KN
28 3 1/2“ 495 156 350 131 594 138
32 4“ 640 197 485 167 778 177
36 4 1/2“ 815 246 615 209 982 219
40 5“ 1010 296 755 252 1215 270
44 5 1/2“ 1260 354 925 303 1475 321
48 6“ 1450 415 1090 353 1750 378
52 6 1/2“ 1690 482 1280 408 2050 442
56 7“ 1970 553 1490 467 2380 505
60 7 1/2“ 2250 631 1710 534 2730 562
64 8“ 2570 712 1940 603 3110 653
72 9“ 3250 889 2460 758 3930 813
80 10“ 4020 1087 3050 932 4850 997
88 11“ 4870 1296 3690 1118 5870 1196
96 12“ 5790 1632 4380 1320 6990 1415
