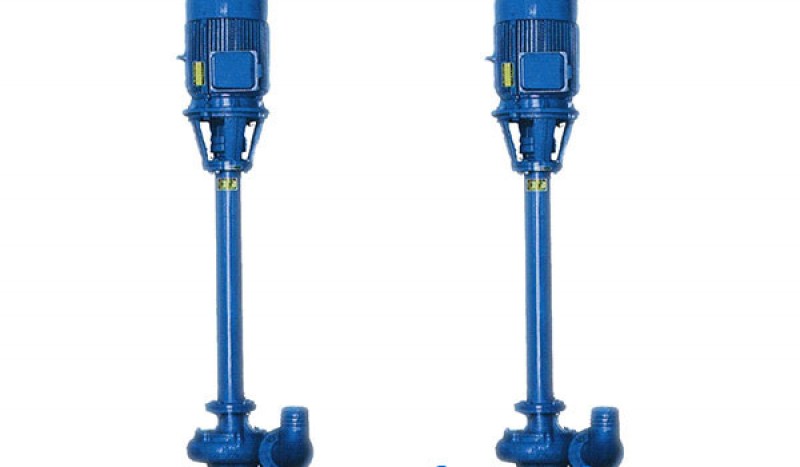

NL Series Sewage and Slurry Pump
China NL Series Sewage and Slurry Pump:
This pump is a single-stage single-suction centrifugal pump, the main components are volute, impeller, pump seat, pump shell, support cylinder, motor seat, motor and other components.Volute, pump seat, motor seat and impeller nut are cast iron with good corrosion resistance and convenient processing technology.
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| NL50-8 | 20-30 | 8-9.0 | 1430 | 1.5 |
| NL50-12 | 25-38 | 12-14.0 | 1430 | 3 |
| NL65-16 | 50-60 | 15-18.0 | 1430 | 5.5 |
| NL76-9 | 50-70 | 9-10.0 | 1430 | 3 |
| NL80-12 | 80-120 | 11-13.0 | 1430 | 7.5 |
| NL100-16 | 80-100 | 15-17 | 1430 | 15 |
| NL150-12 | 100-150 | 11-13.0 | 1430 | 18.5 |
| NL150-16 | 120-180 | 15-20.0 | 1430 | 22 |
