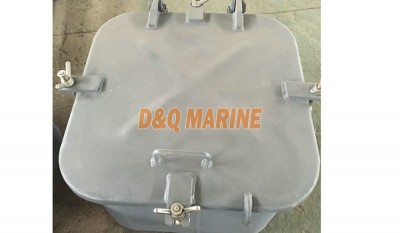

Marine steel small size hatch cover
Category:
Hatch Cover
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine steel small size hatch cover:
Marine steel small size hatch cover:

It is used valid of all kinds of ships.

Technical data:

TYPE NOMINAL SIZE
L B
SIZE OF CLEAR OPENING
L1 B1 R
SIZE OF COVER
L2 B2
SIZE OF COVER
t
E

EL

ES

F

FL

FS
450 630 420 600 100 508 688 4
512 692 6
530 530 500 500 100 588 588 4
592 592 6
630 630 600 600 100 688 688 4
692 692 6
630 830 600 800 100 688 888 4
692 892 6
830 830 800 800 100 888 888 4
892 892 6
HATCH BUTTERFLYCLIP
CLIP DIA
WEIGHT Kg
to H E F
4,6 100

150

200
M16 20.9 22.2
6,8 27.6 28.8
4.6 20.7 22
6,8 27.3 28.5
4,6 M20 26.3 27.1
6,8 35.1 35.9
4,6 32.5 33.1
6,8 43.6 44.2
4,6 39.2 40.5
6,8 53.3 54.5
