Marine Angle Mud Box CB/T3198-94:
China Marine Angle Mud Box CB/T3198-94:

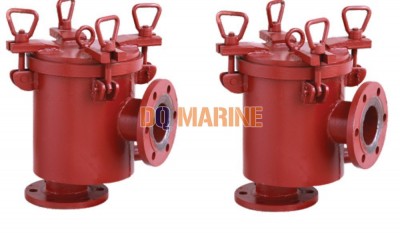

Marine Angle Mud Box CB/T3198-94 is used as the suction mud box of the bilge pipe system on the location of marine machinery and its shaft tunnel, in order to block the cotton yarn, cloth, oil mud and other sewage into the suction pipe system.
Technical Specification:
Standard: CB/T3198-94, CBM1062-81
Flange size as per: GB569 or GB2501
Inspection Standard: GB600
Nominal Pressure: 0.1Mpa
Nominal Size: DN50-250
Main Parts & Material:
Body: Cast Iron (HT200) with painting or hot dip galv
Filter Screen: carbon steel with hot dip galv or stainless steel
Main Size List(mm):
For B type (Flange as per GB569):
| DN | L | l | l1 | B | H | h | D0 | δ | D | D1 | D2 | b | d0 | no of Bolt | Th | Weight(kgs) |
| 50 | 227.5 | 120 | 40 | 184 | 273 | 135 | 150 | 10 | 135 | 103 | 84 | 15 | 15 | 6 | M14 | 15.6 |
| 65 | 280 | 150 | 52.5 | 222 | 320 | 160 | 192 | 11 | 155 | 123 | 104 | 15 | 15 | 6 | M14 | 27.5 |
| 80 | 300 | 160 | 55 | 240 | 350 | 180 | 212 | 11 | 170 | 138 | 118 | 15 | 15 | 8 | M14 | 30.6 |
| 100 | 355 | 190 | 70 | 282 | 390 | 210 | 264 | 12 | 190 | 158 | 138 | 15 | 15 | 8 | M14 | 38.5 |
| 125 | 430 | 235 | 87.5 | 356 | 496 | 285 | 328 | 14 | 215 | 183 | 164 | 15 | 15 | 10 | M14 | 74.9 |
| 150 | 510 | 280 | 110 | 431 | 600 | 345 | 402 | 16 | 240 | 208 | 190 | 16 | 15 | 12 | M14 | 113.3 |
| 200 | 612.5 | 330 | 135 | 606 | 741 | 440 | 506 | 18 | 295 | 264 | 247 | 16 | 15 | 12 | M14 | 198.2 |
| 250 | 717.5 | 380 | 155 | 874 | 874 | 500 | 598 | 19 | 365 | 327 | 306 | 18 | 17 | 14 | M16 | 343.2 |
For BS type (Flange as per GB2501):
| DN | L | l | l1 | B | H | h | D0 | δ | D | D1 | D2 | b | d0 | no of Bolt | Th | Weight(kgs) |
| 50 | 227.5 | 120 | 40 | 184 | 273 | 135 | 150 | 10 | 140 | 110 | 90 | 16 | 14 | 4 | M12 | 16.2 |
| 65 | 280 | 150 | 52.5 | 222 | 320 | 160 | 192 | 11 | 160 | 130 | 110 | 16 | 14 | 4 | M12 | 28.5 |
| 80 | 300 | 160 | 55 | 240 | 350 | 180 | 212 | 11 | 190 | 150 | 128 | 18 | 18 | 4 | M16 | 32.6 |
| 100 | 355 | 190 | 70 | 282 | 390 | 210 | 264 | 12 | 210 | 170 | 148 | 18 | 18 | 4 | M16 | 43.1 |
| 125 | 430 | 235 | 87.5 | 356 | 496 | 285 | 328 | 14 | 240 | 200 | 178 | 20 | 18 | 8 | M16 | 81.2 |
| 150 | 510 | 280 | 110 | 431 | 600 | 345 | 402 | 16 | 265 | 225 | 202 | 20 | 18 | 8 | M16 | 200.4 |
| 200 | 612.5 | 330 | 135 | 606 | 741 | 440 | 506 | 18 | 320 | 280 | 258 | 22 | 18 | 8 | M16 | 207.6 |
| 250 | 717.5 | 380 | 155 | 874 | 874 | 500 | 598 | 19 | 375 | 335 | 312 | 24 | 18 | 12 | M16 | 354.4 |
