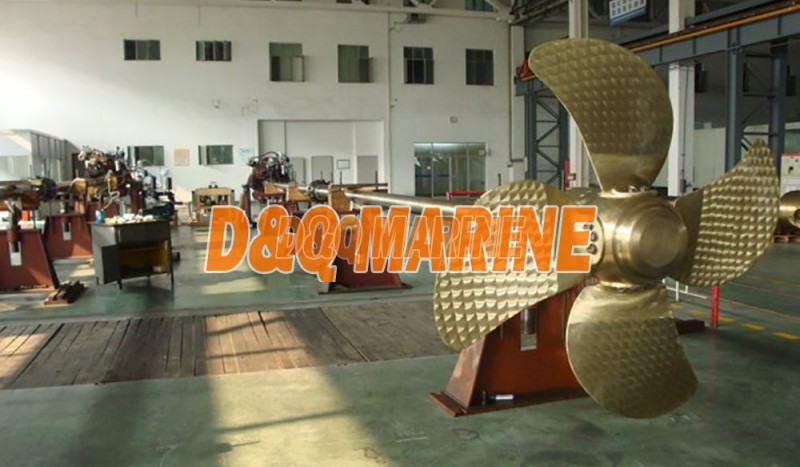

Main Controllable Pitch Propeller
Category:
Main Propulsion
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Main Controllable Pitch Propeller:
1. Main Controllable Pitch Propeller Function And Basic Conditions

This device is used to improve the maneuverability of the ship and shipping economy of the equipment, make the ship on the voyage don't change the speed of the host and steering navigation operation under various working conditions can be realized, and the size and direction of thrust can be controlled by adjusting the pitch. KL type is the controllable pitch propeller rear power cylinder type of controllable pitch propeller, simple structure and reliable.

2.The equipment composition and the main features
Device mainly includes the controllable pitch propeller , hub components, cylinder components, paddle (stern) axis (including dual tubing components), oil distribution, intermediate shaft as defined by the shafting design, etc. Oar shell and the blade is made of high quality manganese aluminum bronze material (ZCuAl8Mn13Fe3Ni2 GB1176-87).In addition, also includes a provision of hydraulic system and is used to adjust the pitch of the electrical operating system for the remote control pitch. The ship adopts electric liquid proportion servo control system (with the host load control).Through rotary vane rotating blades, change its pitch, can make the ship propeller in various working conditions - host - best fit of the hull of the ship, can make the ship get speed from zero to maximum speed at any speed, also can make the propeller on the host various conditions can absorb all the power. Smooth speed adjustment process, by changing the pitch, in the case of a host to the same, can realize effective braking of the ship sailing and good motor performance

Product details

XF3- blade size

Hub size A B C D E F G min H
30 418 140 33 300 190 272 75 30
33 470 159 40 330 205 298 80 35
36 513 173.5 40 360 224 325 85 35
39 556 188 45 390 243 352 90 40
42 587 200 45 420 263 380 100 40
46 643 220 50 460 288 415 110 50
50 700 240 55 500 313 450 120 50
55 749 253 60 550 345 500 130 50
60 817 276 65 600 375 547 140 60
66 896 308 70 660 400 612 155 65
72 969 325 75 720 445 650 170 80
79 1010 335 85 790 500 700 185 80
86 1145 380 90 860 545 780 200 95
94 1250 415 100 940 596 840 220 95
102 1300 430 110 1020 660 920 240 110
111 1400 450 120 1110 716 1000 260 110
121 1552 505 125 1210 782 1090 285 125
132 1670 545 140 1320 850 1180 310 125
144 1805 575 155 1440 936 1285 340 150
157 1987 625 170 1570 1014 1400 370 150
171 2075 575 185 1710 1105 1500 400 175
179 2250 710 195 1790 1150 1570 420 175
186 2240 730 205 1860 1210 1640 440 175
194 2450 770 210 1940 1260 1710 480 200
202 2550 805 220 2020 1320 1790 520 200
211 2670 840 230 2110 1370 1870 555 200
220 2800 875 240 2200 1430 1950 570 200

Hub size Hub type Number of blades a b c e s f g h
38 Se 3 180 254 311 810 840 440 490 770
45 Se 3 200 288 341 810 840 440 490 770
53 Se 3 200 380 405 980 970 520 510 770
57 Se 4 240 405 440 980 890 520 510 770
59 Se 3 300 448 250 1200 1180 580 585 770
63 Se 4 290 456 245 1200 1180 580 585 770
69 Se 4 320 470 268 1200 1180 580 585 770
72 KS 4 410 555 305 1230 1430 620 670 770
79 KS 4 450 610 335 1290 1445 700 670 770
86 KS 4 490 665 365 1440 1485 780 690 770
94 KS 4 535 730 400 1490 1615 850 690 770
96 Se 4 280 650 330 1570 1650 740 690 770

Hub size Hub type Number of blades a b c e s f g h
53 Se 3 200 380 405 440 520 480 420 320
57 Se 4 240 405 440 440 520 480 420 320
59 Se 3 300 448 250 515 580 500 480 350
63 Se 4 290 456 245 515 580 480 420 320
69 Se 4 320 470 268 515 580 500 480 350
72 KS 4 410 555 305 510 620 500 480 350
79 KS 4 450 610 335 525 700 500 480 350
86 KS 4 490 665 365 730 780 580 595 420
94 KS 4 535 730 400 750 850 580 595 420
96 Se 4 280 650 330 930 740 580 595 420
