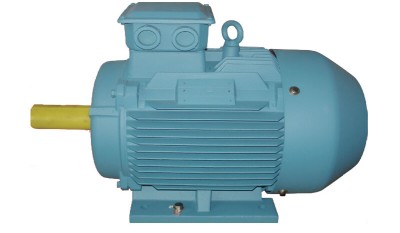

M2E-H Series High-Efficiency Three-phase Marine Motor:
China M2E-H Series High-Efficiency Three-phase Marine Motor:
M2E-H Series are totally-enclosed, fan-cooled high-efficiency three-phase marine motors of the squirrel-cage type. The series motor hasthe advantage of high effiency, low noise, reasonable structure, beautiful profile, high protection and high insulation. The motors are suitable for driving various machines on ships such as pumps, blowers separators, hydraulic engines and other auxiliary equipment.
| Main Technical Data | ||||
| Model |
Power Kw |
Current A |
Speed r/min |
Tax Tn |
| M2E-80M1-2-H | 0.75 | 1.7 | 2820 | 2.3 |
| M2E-80M2-2-H | 1.1 | 2.4 | 2820 | 2.3 |
| M2E-90S-2-H | 1.5 | 3.2 | 2840 | 2.3 |
| M2E-90L-2-H | 2.2 | 4.6 | 2840 | 2.3 |
| M2E-100L-2-H | 3 | 6.0 | 2880 | 2.3 |
| M2E-112M-2-H | 4 | 7.8 | 2890 | 2.3 |
| M2E-132S2-2-H | 5.5 | 10.6 | 2900 | 2.3 |
| M2E-160M1-2-H | 7.35 | 14.4 | 2900 | 2.3 |
| M2E-160M2-2-H | 11 | 20.6 | 2930 | 2.3 |
| M2E-160L-2-H | 15 | 27.9 | 2930 | 2.3 |
| M2E-180M-2-H | 18.5 | 34.2 | 2930 | 2.3 |
| M2E-200L1-2-H | 22 | 40.5 | 2940 | 2.3 |
| M2E-200L2-2-H | 30 | 54.9 | 2955 | 2.3 |
| M2E-225M-2-H | 37 | 67.4 | 2960 | 2.3 |
| M2E-250M-2-H | 45 | 80.8 | 2969 | 2.3 |
| M2E-280S-2-H | 55 | 98.5 | 2970 | 2.3 |
| M2E-280M-2-H | 75 | 134 | 2970 | 2.3 |
| M2E-315S-2-H | 90 | 160 | 2970 | 2.3 |
| M2E-315M-2-H | 110 | 195 | 2970 | 2.3 |
| M2E-315L1-2-H | 132 | 234 | 2970 | 2.3 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
