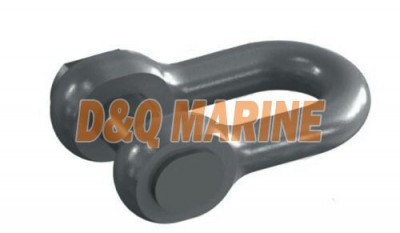

LTM D Type Anchor Shackle
Category:
Offshore Anchor Series
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
LTM D Type Anchor Shackle:
China LTM D Type Anchor Shackle:
Material: High Tensile Steel
Finish:Self Color or Black Painting
Temperature Range: -20C to 200C

Certificate: ABS, LR, BV

Chain Size
(MM)
Grade ORQ Grade R3 Grade R3s Grade R4
PL(KN) BL(KN) PL(KN) BL(KN) PL(KN) BL(KN) PL(KN) BL(KN)
50 1400 2110 1560 2230 1800 2490 2160 2740
52 1508 2273 1680 2400 1940 2680 2330 2960
54 1620 2441 1810 2580 2080 2880 2500 3170
56 1735 2615 1940 2760 2230 3090 2680 3400
58 1854 2794 2070 2950 2380 3300 2860 3630
60 1976 2978 2200 3150 2540 3510 3050 3870
62 2101 3166 2340 3350 2700 3740 3240 4110
64 2230 3360 2490 3550 2870 3970 3440 4360
66 2361 3559 2630 3760 3040 4200 3640 4620
68 2496 3762 2780 3980 3210 4440 3850 4890
70 2634 3970 2940 4200 3390 4690 4060 5160
73 2847 4291 3170 4540 3660 5060 4390 5570
76 3066 4621 3420 4880 3940 5450 4730 6000
78 3216 4847 3590 5120 4140 5720 4960 6300
81 3446 5194 3840 5490 4430 6130 5320 6750
84 3683 5550 4110 5870 4740 6550 5680 7210
87 3925 5916 4380 6250 5050 6980 6060 7680
90 4173 6289 4650 6650 5370 7420 6440 8170
92 4342 6544 4840 6920 5580 7720 6700 8500
95 4599 6932 5130 7330 5910 8180 7100 9000
97 4774 7185 5320 7600 6140 8490 7370 9340
100 5040 7596 5620 8030 6480 8960 7780 9860
102 5220 7868 5820 8320 6710 9290 8050 10220
105 5495 8282 6130 8750 7070 9770 8470 10750
107 5681 8561 6630 9050 7300 10100 8760 11120
111 6058 9130 5760 9650 7790 10780 9350 11860
114 6346 9565 7080 10110 8160 11290 9790 12420
