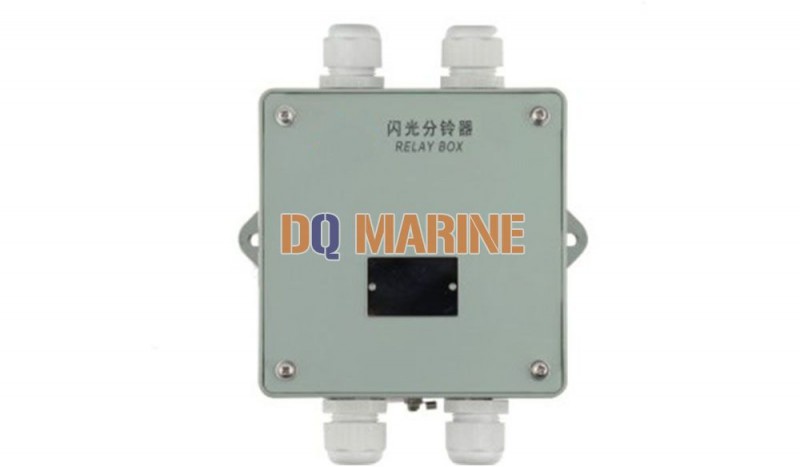

KL-1G Relay Box

KL-1G Relay Box

KL-1G Relay Box Function

KL-1G/2G relay box

Relay box is used for auto telephone or the battery less telephone.

With two sets of active output, with one set of passive contact output.

Contact output normally close or rhythm is optional.

Technical Parameter

Power supply: KL-1G DC24V (-25%~+30%)

KL-2G AC220V±10%

Color: Green gray (RAL6034)

Active output capacity: KL-1G DC24V/1A

KL-2G AC220V/1A

Passive contact load (resistance): 8A/250V AC

Passive contact maximum switchover voltage: 440V AC/125V DC

IP Class: IP 44

Weight: 0.6/1.0kg

Stuffing box cable entrance hole size: 4-Ф12mm

KL-1G Mounting Size
