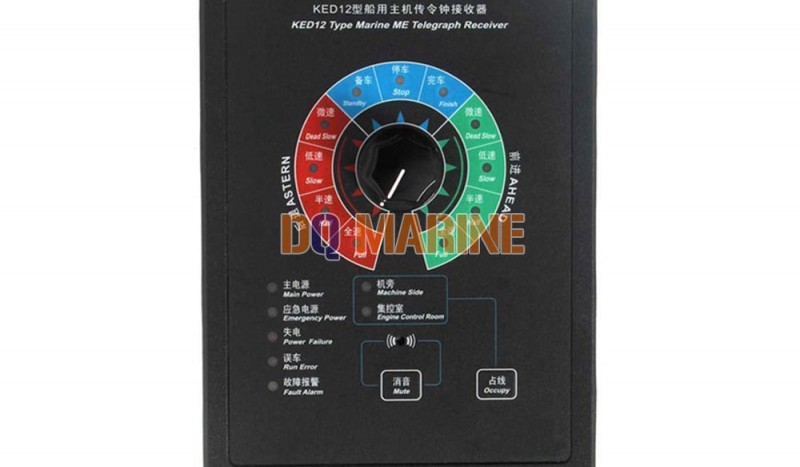

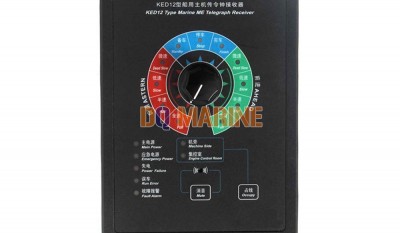

KED12-J-Q Telegraph Receiver

KED12-J-Q Telegraph Receiver

KED12-J-Q Telegraph Receiver Function

Microprocessor technology and four-core cable connection mode.

Operation of telegraph consists of 11 steps.

When the transmitter and receiver are not synchronous, it will send out audible and visual alarm.

Power failure alarm, fault alarm, and error alarm.

Technical Parameter

Power supply: DC 24V

Alarm sound pressure level: 80~90dB

Passive contact load (resistance): 2A/30V DC 1A/125V AC

Maximum shift voltage of passive contact: 240V AC 120V DC

Active output capacity: DC 24V/1A

Color: Black (RAL 9005)

IP Class: IP 20

Weight: 0.6kg

KED12-J-Q Mounting Size
