ISG Series Single-stage Single-sucked Vertical Pipeline Centrifugal Pump:
China ISG Series Single-stage Single-sucked Vertical Pipeline Centrifugal Pump:
Type ISG series single stage single suction centrifugal pump, IS the unit of science and technology personnel joint domestic pump experts to choose domestic excellent hydraulic model, adopt IS type of centrifugal pump performance parameters, on the basis of the general vertical pump to design ingenious combination and become, at the same time according to different use, such as temperature, medium on the basis of type ISG derived for hot water, high temperature, corrosive chemical pump, oil pump.This series of products have the advantages of high efficiency, low noise and reliable performance.

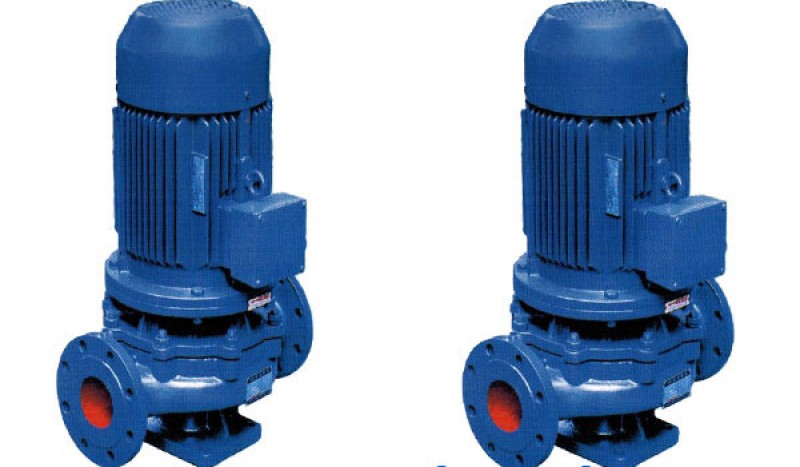

ISG Series Single-stage Single-sucked Vertical Pipeline Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 15-80 | 1.1 | 8.5 | 2800 | 0.18 |
| 20-110 | 1.8 | 16 | 2800 | 0.37 |
| 20-160 | 2.8 | 33 | 2900 | 0.75 |
| 25-110 | 2.8 | 20.6 | 2900 | 0.55 |
| 25-125 | 2.8 | 17 | 2900 | 0.75 |
| 25-125A | 2.6 | 33 | 2900 | 0.55 |
| 25-160 | 4.5 | 29 | 2900 | 1.5 |
| 25-160A | 4.4 | 12.5 | 2900 | 1.1 |
| 32-100(I) | 3.5 | 13.2 | 2900 | 0.55 |
| 32-125 | 3.1 | 22 | 2900 | 0.75 |
| 32-125A | 6.5 | 17.6 | 2900 | 0.75 |
| 32-160 | 4 | 32 | 2900 | 0.55 |
| 32-160A | 4.4 | 25 | 2900 | 1.5 |
| 32-200 | 4.5 | 33.2 | 2900 | 1.1 |
| 32-200(I) | 4.4 | 50 | 2900 | 2.2 |
| 32-200A | 2.8 | 50.5 | 2900 | 3 |
| 40-100 | 4.4 | 44.6 | 2900 | 4 |
| 40-100A | 3.9 | 132.2 | 2900 | 2.2 |
| 40-125 | 4.4 | 10.6 | 2900 | 3 |
| 40-125A | 3.9 | 21 | 2900 | 4 |
| 40-160 | 4.4 | 17.6 | 2900 | 2.2 |
| Also have bigger pumps, pls contact us for more information. | ||||
