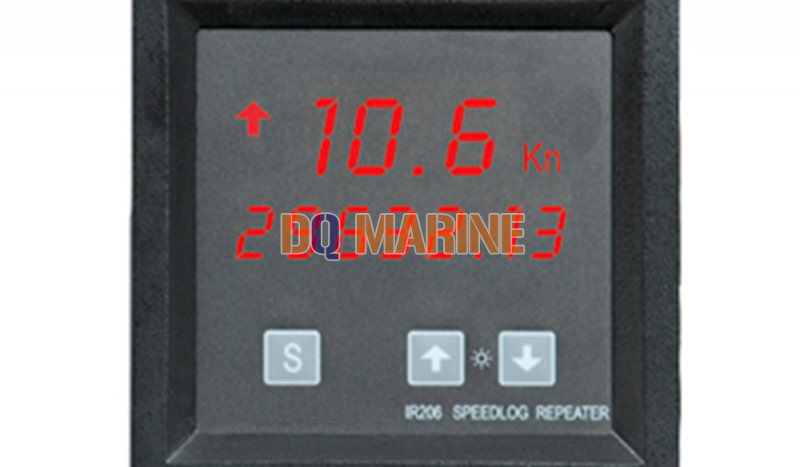

IR206 Speed Log Repeater
IR206 Speed Log Repeater Introduction
1. Confirm to “General specification for echo-sounding equipment in ships” issued by Maritime Safety Administration of P.R.C.
2. High-precision & High-reliability.
3. Brightness adjustable display tubes with wide viewing angles and brightness adjustment function.
4. Shallow water alarm make sure your navigation safety.
5. You can choose from a variety of distance unit.
6. Test itself automatically when the machine is starting.
IR206 Product Technical Parameter
| The displayer | 0.8-inch 3-bit high-performance digital tube for the speed display area while 0.5-inch 7-bit high-performance digital tube for the distance display area |
| Speed display range | 0.1Kn-99.9Kn |
| Distance display rang | 0.01Kn-99999.99Kn |
| Brightness adjustment | 15 stages |
| Directional presentation | forward & backward |
| Interface | NMEA0183 |
