Hydraulic spray head:
China Hydraulic spray head:
The water curtain nozzle uses the working pressure of the fire main as the working power, and the pressure water is ejected through the water curtain nozzle to form the water curtain.The water curtain sprinkler head is used for the protection system of ships, and can also be used as the deck fire prevention and cooling facilities of special ships.

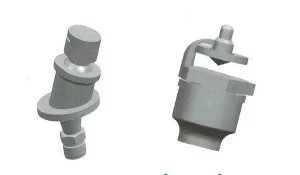

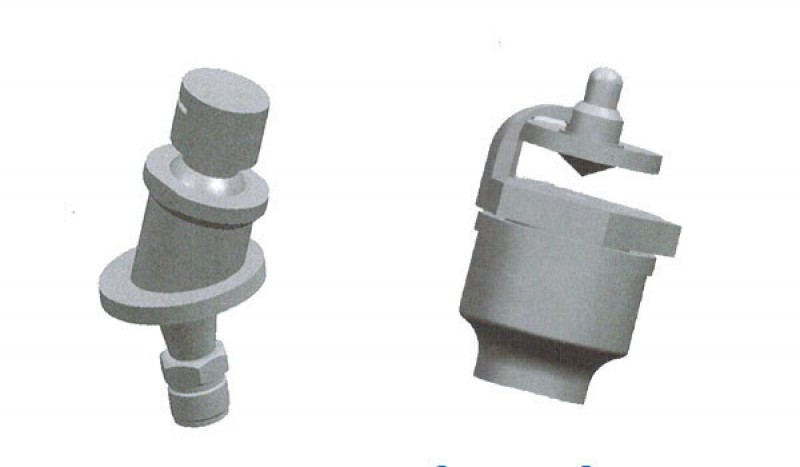

Hydraulic spray head
Main Technical Data
| Model |
Capacity m³/h |
Working pressure MPa |
Water height m |
Eruptible angle ° |
| Sm-1 | 6.5 | 0.6 | 3 | 90 |
| Sm-2 | 5 | 0.6 | 3 | 90 |
| Sm-3 | 3.3 | 0.6 | 3 | 60 |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
