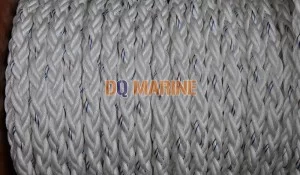

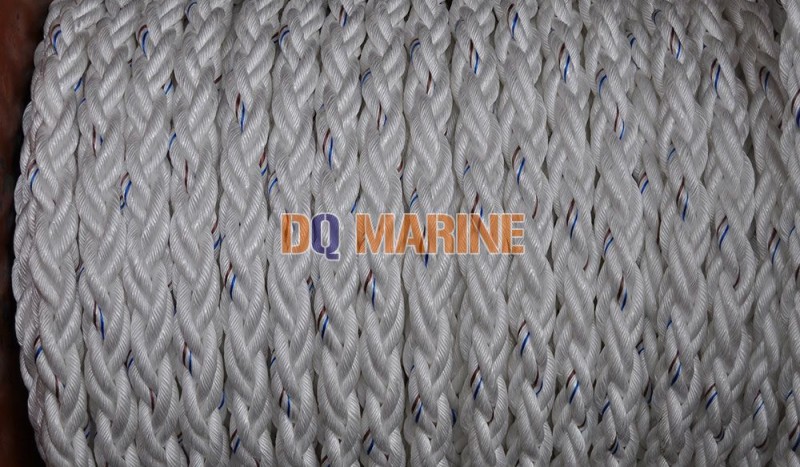

High Tenacity Polypropylene Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
High Tenacity Polypropylene Rope:
China High Tenacity Polypropylene Rope:

High Tenacity Polypropylene Rope is mainly used in marine,fishing and offshore applications.

The rope is easy to operate, won't rotate. It is produce by 8 strand or 12 strand wharve,every two pairs interlace weave pattern.

Construction: 8 strand or 12 strand.

Spec density: 0.92 floating.

Melting point: 165℃.

Abrasion resistance: medium.

U.V. resistance: medium.

Temperature resistance: 70℃ maximum.

Chemical resistance: Good. Slight reaction to solvents and strong oxidizing agents.

Parameter Table:
Diameter Circumference Weight Breaking Strength
mm Inch Inch KGS/100 meter LBS/100 feet kg KN
24 15/16“ 3“ 27 18 9600 94
28 1 1/8“ 3 1/2“ 37 25 12800 126
32 1 1/4“ 4“ 49 33 16240 159
36 1 7/16“ 4 1/2“ 61 41 20240 199
40 1 9/16“ 5“ 75 51 24960 245
44 1 3/4“ 5 1/2“ 93 62 30240 297
45 1 25/32“ 5 5/8“ 97 65 31520 309
48 1 7/8“ 6“ 109 73 35040 344
50 2“ 6 1/4“ 118 80 38080 374
52 2 1/16“ 6 1/2“ 127 86 40640 399
55 2 5/32“ 6 7/8“ 143 96 45600 447
56 2 1/4“ 7“ 148 100 46800 459
60 2 3/8“ 7 1/2“ 170 114 53280 523
64 2 1/2“ 8“ 193 130 59840 587
65 2 9/16“ 8 1/16“ 200 134 61600 604
68 2 11/16“ 8 1/2“ 219 147 67040 658
70 2 3/4“ 9“ 231 155 70960 696
72 2 7/8“ 9“ 245 165 75200 738
75 3“ 9 1/4“ 266 178 81440 799
80 3 5/32“ 10“ 303 204 92800 910
85 3 3/8“ 10 1/2“ 342 230 104800 1028
88 3 7/16“ 11“ 367 246 110400 1083
90 3 9/16“ 11 1/8“ 383 258 115200 1130
95 3 3/4“ 11 3/4“ 427 287 128000 1256
96 3 13/16“ 12“ 436 293 130400 1279
100 3 15/16“ 12 3/8“ 473 318 140800 1381
104 4 1/8“ 13“ 509 342 149600 1468
112 4 7/16“ 14“ 592 398 172000 1687
120 4 3/4“ 15“ 682 458 196800 1930
