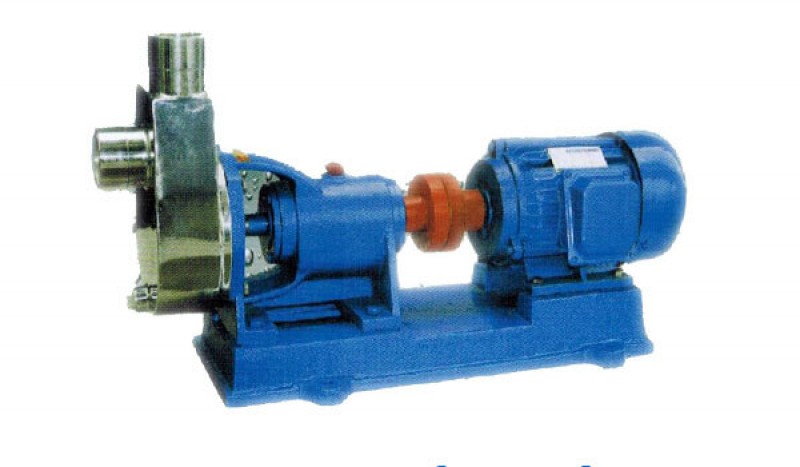

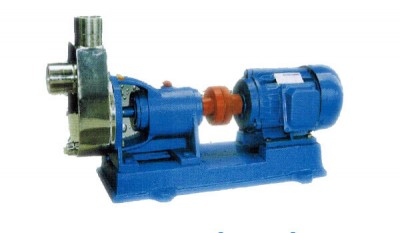

HBX Series Stainless Steel Corrosion-proof Self-sucked Pump
China HBX Series Stainless Steel Corrosion-proof Self-sucked Pump:
HBX series stainless steel corrosion resistant centrifugal pump of this series of pump impeller using half open structure, others adopt closed structure, the pump shaft seal adopts the Germany advanced technology of cantilever type mechanical seal, because the products of our company with excellent structure, performance, modeling, and parts and connecting frame is made of high quality stainless steel material, so, this series of products with corrosion resistant performance is reliable, convenient operation and maintenance, compact structure, low energy consumption, good sealing performance and a series of a bit.
Main Technical Data
| Model | Capacity m³/h | Head m | Rev speed r/min | Motor power KW |
| 25HBX-13 | 2.9 | 16 | 2800 | 0.55 |
| 25HBX-13A | 2.9 | 16 | 2800 | 0.75 |
| 30HBX-13 | 2.9 | 16 | 2800 | 1.5 |
| 40HBX-13 | 2.9 | 21 | 2800 | 2.2 |
| 40HBX-18 | 6 | 21 | 2800 | 1.5 |
| 50HBX-18 | 6 | 28 | 2800 | 3 |
| 50HBX-20 | 6 | 28 | 2900 | 2.2 |
| 50HBX-22 | 8 | 28 | 2900 | 3 |
| 50HBX-25 | 8.5 | 28 | 2900 | 3 |
