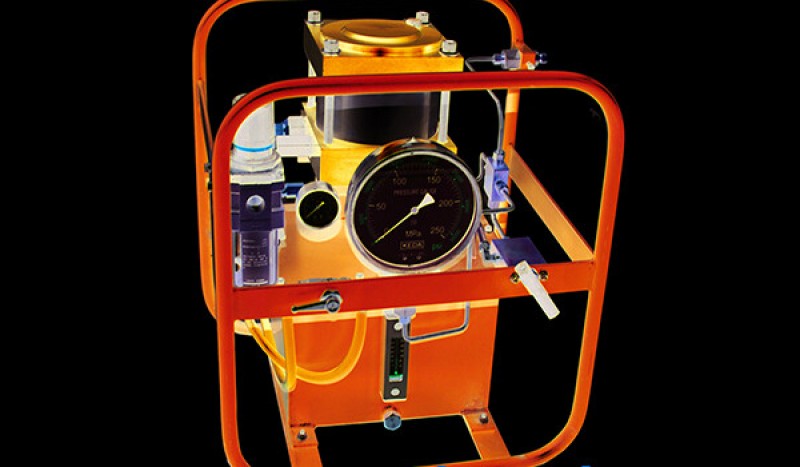

FYK Series FYK2000 Pneumatic hydraulics use
Summarize:
Compressed air as power to drive the plunger of hydraulic pump to form pressure oil,and the high oil pressure is generated by the ratio between the piston and the piston area of the oil pump. It has a compact structure and light weight. It is an ideal power source for hydraulic system. In recent years, it has been widely used in all kinds of industrial and mining and installation enterprises.
| Main Technical Data | |
| FYK2000 | |
| Shape size | 470*400*530mm |
| Tank volume | 12L |
| Weight | 40Kg(oil free) |
| Output pressure | Max 200MPa(When the input air pressure is 0.57MPa) |
| Maximum flow rate | 0.512L/min(when the output oil pressure is zero) |
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
