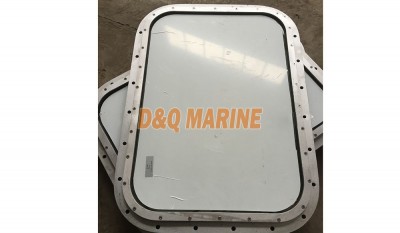

Fixed Rectangular Window For Wheel House:
Fixed Rectangular Window For Wheel House:
| TYPE | NOMINAL DIM. | WINDOW SEAT | BULKHEAD OPENING | ||
| W1XH1 | W2XH2 | W3XH3 | W4XH4 | R | |
| A | 800X630 | 848X678 | 930X760 | 852X682 | |
| 800X710 | 848X758 | 930X840 | 852X762 | ||
| 900X630 | 948X678 | 1030X760 | 952X682 | ||
| 900X710 | 948X758 | 1030X840 | 952X762 | ||
| 900X800 | 948X848 | 1030X930 | 952X852 | ||
| 1200X630 | 1248X678 | 1330X760 | 1252X682 | ||
| 1200X710 | 1248X758 | 1330X840 | 1252X762 | 126 | |
| 1200X800 | 1248X848 | 1330X930 | 1252X852 | ||
| 1500X710 | 1548X758 | 1630X840 | 1552X762 | ||
| 1500X800 | 1548X848 | 1630X930 | 1552X852 | ||
| 1800X710 | 1848X758 | 1930X840 | 1852X762 | ||
| 1800X800 | 1848X848 | 1930X930 | 1852X852 | ||
| 1800X900 | 1848X948 | 1930X1030 | 1852X952 | ||
| GLASS | TH. | KG | |
| BH | BN | BH | BN |
| 12 | 15 | 25.5 | 25.9 |
| 12 | 15 | 28.1 | 28.7 |
| 12 | 17 | 28.2 | 30 |
| 12 | 17 | 30.9 | 32.9 |
| 12 | 17 | 33.9 | 36.1 |
| 15 | 20 | 41.6 | 44 |
| 15 | 20 | 45.9 | 48.6 |
| 15 | 20 | 50.6 | 53.6 |
| 15 | 20 | 56.1 | 59.4 |
| 15 | 20 | 61.2 | 64.9 |
| 15 | 20 | 66.3 | 70.3 |
| 15 | 20 | 72.4 | 76.8 |
| 15 | 20 | 77.5 | 82.5 |
