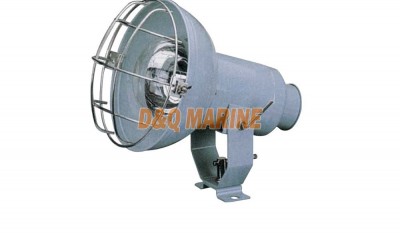

FDL-R13/R14 Spot Light
Category:
75 KW Bow Thruster
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
FDL-R13/R14 Spot Light:
The scope of application

This product is designed to use for spot lighting in ship, shipyard, port, wharf, storage yard, and oil-platform etc.

Products feature

1. The body and support of light adopt good quality stainless steel which are molded by compression molding, with the feature of excellent corrosion resistance.

2. The body of light can be adjusted 46 degree up, 45 degree down and rotated 360 degree in horizontal.

3. The cable outside diameter is Φ12~Φ14 mm.

4. Protection class: IP56

Adopt standard and product certification

1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.

2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.

3. Adopt JAPAN JIS C8105-2-5-2003 STANDARD TO ORGANIZE PRODUCTION.

Installation

FDL-R13/R14 Spot Light Specification

Type L(mm) Voltage(V) Llluminant Luminous Flux(Lm) Using Life(H) Weight(Kg)
FDL-R13 390 220V/50HZ 220V/60HZ 110V/60HZ Incandesecent Lamp Spot Type RS300/500WH 2920/5120 2000 3.2
Incandesecent Lamp Wide Type RF300/500WH
Self-Ballast Mercury Light BHRF300/500WH 4100/9000 9000
Tungsten Halogen Lamp JD250/500WH 3570/7000 2000
FDL-R14 434 Mercury Lamp Clear Type HR250/300/400N 8700/9600/1300 12000 3.3
Mercury Lamp Fluorescent Type HRF200/250/300/400X 7000/9500/11500/15000
Incandesecent Lamp Spot Type RS1000WH 10800 2000 3.5
Incandesecent Lamp Wide Type RF750/1000WH 8100/10800
