Extra Heavy Wire Rope Thimbles G414
Description

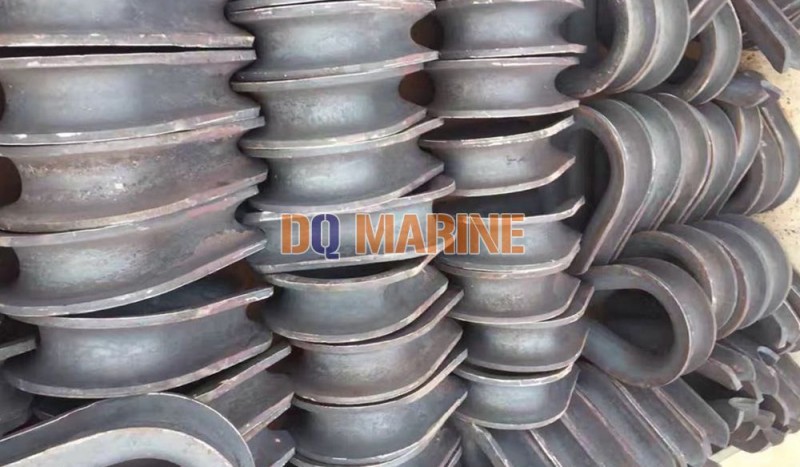

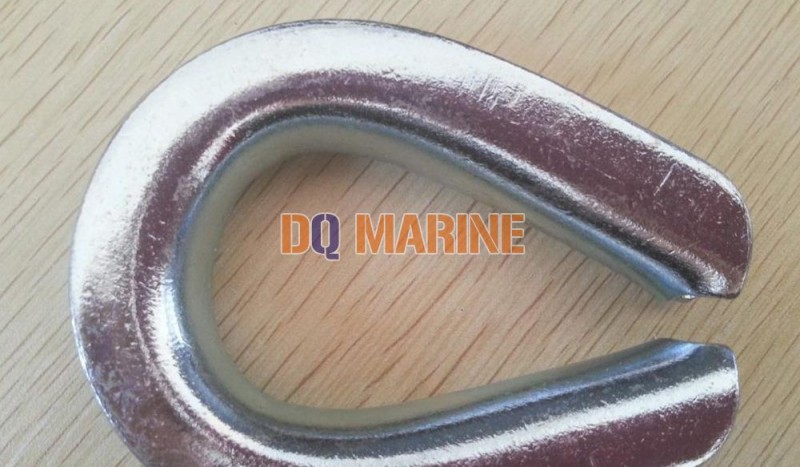

Extra Heavy Wire Rope Thimbles G414 adopts American standard, it is constructed by sheet metal forming technology, and the material is Q235 steel, Surface can be electro galvanized or hot galvanized. The size is from 1/4in to 1/2in and the pull is from 0.5T to 20T. It is widely used to steel and iron, electricity, port and other industry.
Product Details
Extra Heavy Wire Rope Thimbles G414 sizes table
| Size | Dimensions(in) | Weight 100 pcs (Ibs) | ||||||||
| (in) | (mm) | A | B | C | D | E | F | G | H | |
| 1/4 | 6-7 | 2.19 | 1.62 | 1.5 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 | 6.5 |
| 5/16 | 8 | 2.5 | 1.88 | 1.81 | 1.06 | 0.5 | 0.34 | 0.08 | 0.3 | 11.8 |
| 3/8 | 9-10 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 | 21.6 |
| 7/16 | 11-12 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 | 34.7 |
| 1/2-9/16 | 13-15 | 3.63 | 2.75 | 2.75 | 1.5 | 0.89 | 0.59 | 0.15 | 0.48 | 51 |
| 5/8 | 16 | 3.63 | 3.25 | 3.12 | 1.75 | 1 | 0.66 | 0.16 | 0.53 | 75.7 |
| 3/4 | 18-20 | 4.25 | 3.75 | 3.81 | 2 | 1.22 | 0.78 | 0.22 | 0.69 | 158.1 |
| 7/8 | 22 | 55.5 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 | 177.8 |
| 1 | 24-26 | 6.12 | 4.5 | 4.75 | 2.5 | 1.56 | 1.06 | 0.25 | 0.88 | 313.9 |
| 1 1/8-1 1/4 | 28-32 | 7 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 | 400 |
| 1 1/4-1 3/8 | 32-35 | 9.08 | 6.5 | 6.81 | 3.5 | 2.25 | 1.44 | 0.37 | 1.29 | 886 |
| 1 3/8-1 1/2 | 35-38 | 9 | 6.25 | 7.12 | 3.5 | 2.62 | 1.56 | 0.5 | 1.31 | 1294.8 |
| 1 5/8 | 40 | 11.25 | 8 | 8.12 | 4 | 3 | 1.72 | 0.5 | 1.38 | 1700 |
| 1 3/4 | 44 | 12.19 | 9 | 8.5 | 4.5 | 3.06 | 1.84 | 0.5 | 1.5 | 1775 |
| 1 7/8-2 | 48-52 | 15.12 | 12 | 10.38 | 6 | 3.38 | 2.09 | 0.5 | 1.69 | 2775 |
| 2 -1/4 | 56 | 17.5 | 14 | 11.88 | 7 | 3.88 | 2.38 | 0.62 | 1.82 | 3950 |
