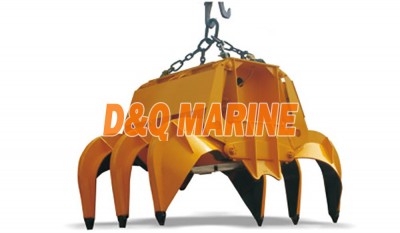

Electric Hydraulic Rectangular Mutivalve Grab Bucket
Electric Hydraulic Rectangular Mutivalve Grab Bucket Technology
| Model | Volume (m3) | Grab self weight (t) | Motor power kw | Rated lifting weight(t) | |
| 380V 50HZ | 440V 60HZ | ||||
| DYJ12[2.0]6 | 2 | 5 | 37 | 43 | 12 |
| DYJ16[2.5]6 | 2.5 | 6 | 37 | 43 | 16 |
| DYJ20[3.2]6.5 | 3.2 | 6.5 | 37 | 43 | 20 |
| DYJ25[5.0]7.5 | 5 | 7.5 | 45 | 52 | 25 |
| DYJ32[5.5]8.5 | 5.5 | 8.5 | 45 | 52 | 32 |
| DYJ32[6.0]9.6 | 6 | 9.6 | 55 | 63 | 32 |
| DYJ40[7.0]10.5 | 7 | 10.5 | 55 | 63 | 40 |
