Electric Hydraulic Double Disc Grab Bucket
1.Electric Hydraulic Double Disc Grab Bucket Technology Parameters:
| Model | Volume (m3) | Grab self weight (t) | Motor power (kw) | Workload | Density | |
| Full | Slop | t | 380V 50HZ | t | t/m3 | |
| DY8-12 | 4.5 | 2.5 | 3.7 | 18.5 | 8 | 0.9-1.6 |
| DY10-12 | 5.5 | 3.5 | 4.5 | 22 | 10 | 0.9-1.6 |
| DY15-12 | 7 | 4.5 | 5 | 22 | 15 | 0.9-1.6 |
| DY20-12 | 10 | 6.8 | 7 | 28 | 20 | 0.9-1.6 |
| DY25-12 | 12 | 8.1 | 9.3 | 37 | 25 | 0.9-1.6 |
| DY30-12 | 18 | 10 | 14.5 | 55 | 32 | 0.9-1.6 |
| DY8-23 | 3 | 1.9 | 3.2 | 18.5 | 8 | 1.6-2.6 |
| DY10-23 | 4 | 2.2 | 4.2 | 18.5 | 10 | 1.6-2.6 |
| DY15-23 | 6.5 | 4 | 5.6 | 22 | 15 | 1.6-2.6 |
| DY20-23 | 8 | 5.4 | 6.5 | 28 | 20 | 1.6-2.6 |
| DY25-23 | 10 | 6.9 | 8 | 37 | 25 | 1.6-2.6 |
| DY32-23 | 12.5 | 8 | 10.5 | 45 | 32 | 1.6-2.6 |

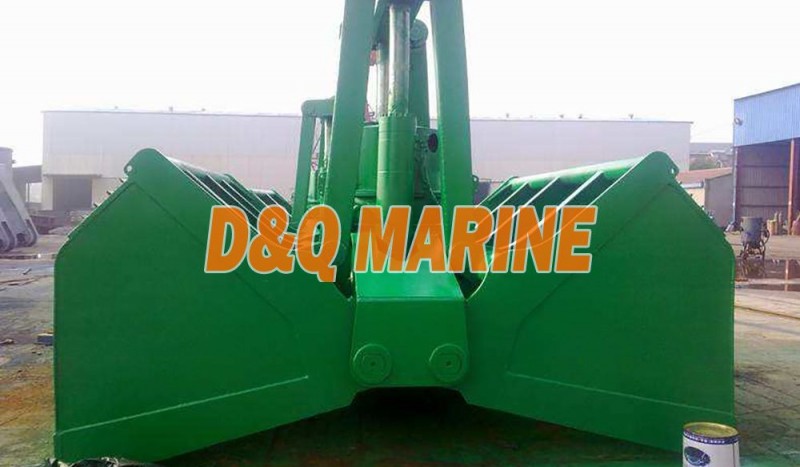

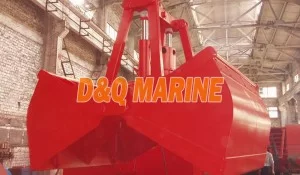

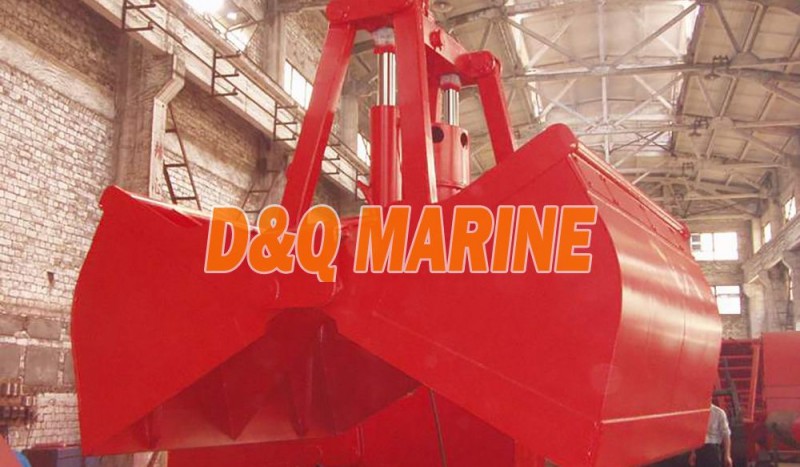

2.Electric Hydraulic Double Disc Grab Bucket Exhibit
