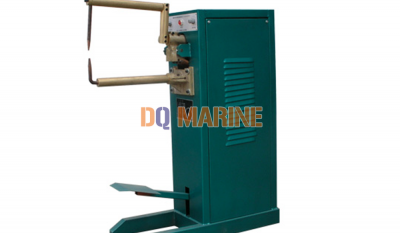

DN-25 Impulse Spot Welding Machine
DN-25 Impulse Spot Welding Machine Introduction
It is used for sheet plate spot welding, thickness 0.3-4.0mm, mainly used for low carbon steel, stainless steel, and galvanizing steel plate, etc.
Electrical components have updated, small size but long life service, adjustable current is available.
Product Technical Parameter
| TYPE | DN-25 (Impulse) |
| Power Voltage | 380V |
| Rated Capacity | 25KVA |
| Secondary Voltage | 1.2-2.4V |
| Low Carbon Steel Thickness | 3.0+3.0mm |
| Electrode Pressure | 180KG |
| Electrode Arm Stroke | 300mm |
