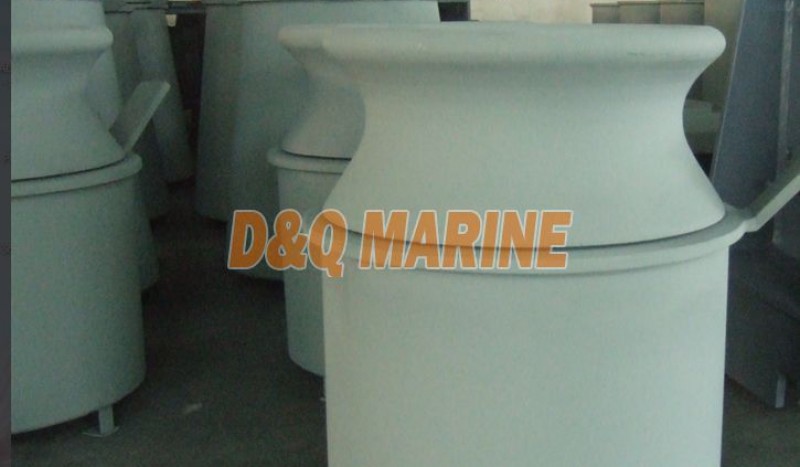

DIN81907 Cleat Single Roller Fairlead
DIN81907 Cleat Single Roller Fairlead
Available Roller:
DIN 81906-1999 Fairlead roller
NS2585 Type Marine warping roller----Also known as GB 10105-88 warping roller
JIS F2014-1987 fairlead roller----Also known as CB58-83 fairlead roller
KOREAN WARPING ROLLER
Cleat fairlead with single roller CB436-2000 A type
Cleat fairlead with single roller CB436-2000 B type
Double Warping Roller With Plate
DIN81907 1997 Fairleads roller
A type Fairlead Rollers.
Steel plate roller.
Drawing:
Size Chart:
| DIN81907-1997 Marine mooring fairleads roller with pedestal A type / B type | |||||
| Product No. | model number | d1*s1 | d2 | b | d4 |
| CFD-001 | 1 | 219*12.5 | 255 | 60 | - |
| CFD-002 | 2 | 273*12.5 | 310 | 60 | - |
| CFD-003 | 3 | 355*12.5 | 395 | 60 | - |
| CFD-004 | 5 | 457*12.5 | 495 | 60 | - |
| CFD-005 | 8 | 559*12.5 | 595 | 80 | 560 |
| CFD-006 | 12 | 660*14.2 | 705 | 80 | 660 |
| CFD-007 | 20 | 660*17.5 | 705 | 100 | 660 |
| CFD-008 | 32 | 813*16 | 865 | 100 | 810 |
