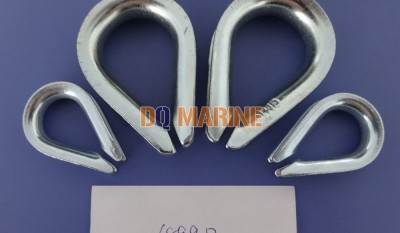

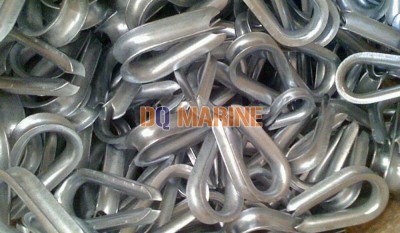

DIN 6899B Wire Rope Thimbles:
Description
This product adopts German standard, it is constructed by sheet metal forming technology, and the material is carbon steel, Surface can be electro galvanized or hot galvanized or dacromet environmental protection galvanized. The size is from 2.5mm to 42mm and the pull is from 0.5T to 20T. It is widely used to lifting and crane industry.
Product Details
DIN 6899B Wire Rope Thimbles sizes table
| Diameter rope (mm) | Dimensions(mm) | Weight 100 pcs(lbs) | ||||
| Groove width | Overall length | Inside length | Inside width | Back thickness | ||
| a | B | I | C | s | ||
| 2.5 | 3 | 22 | 19 | 12 | 1.6 | 0.5 |
| 3.5 | 4 | 26 | 21 | 13 | 1.6 | 0.8 |
| 4 | 5 | 32 | 23 | 14 | 1.9 | 1 |
| 5 | 6 | 38 | 25 | 16 | 2.4 | 1.6 |
| 6 | 7 | 44 | 28 | 18 | 2.4 | 1.9 |
| 7 | 8 | 51 | 32 | 20 | 2.8 | 3 |
| 9 | 10 | 57 | 38 | 24 | 3.1 | 4.7 |
| 11 | 12 | 64 | 45 | 28 | 3.3 | 6.8 |
| 13 | 13 | 70 | 48 | 30 | 3.3 | 8 |
| 13 | 14 | 76 | 51 | 32 | 3.7 | 10 |
| 15 | 16 | 83 | 58 | 36 | 3.8 | 14.5 |
| 16 | 17 | 89 | 61 | 38 | 4.7 | 18 |
| 17 | 18 | 95 | 64 | 40 | 4.7 | 20 |
| 18 | 20 | 102 | 72 | 45 | 5.7 | 29 |
| 20 | 22 | 114 | 80 | 50 | 5.7 | 32 |
| 22 | 24 | 127 | 90 | 56 | 6.5 | 47 |
| 24 | 26 | 140 | 99 | 62 | 6.8 | 59 |
| 26 | 28 | 152 | 112 | 70 | 8 | 80 |
| 28 | 30 | 165 | 120 | 75 | 8 | 110 |
| 30 | 32 | 178 | 128 | 80 | 8 | 123 |
| 32 | 34 | 203 | 152 | 95 | 8.5 | 156 |
| 34 | 36 | 216 | 160 | 100 | 8.5 | 176 |
| 36 | 38 | 229 | 176 | 110 | 8.5 | 192 |
| 38 | 40 | 241 | 184 | 115 | 10.5 | 292 |
| 40 | 42 | 254 | 192 | 120 | 10.5 | 320 |
| 42 | 45 | 305 | 240 | 150 | 10.5 | 364 |
