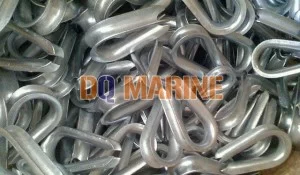

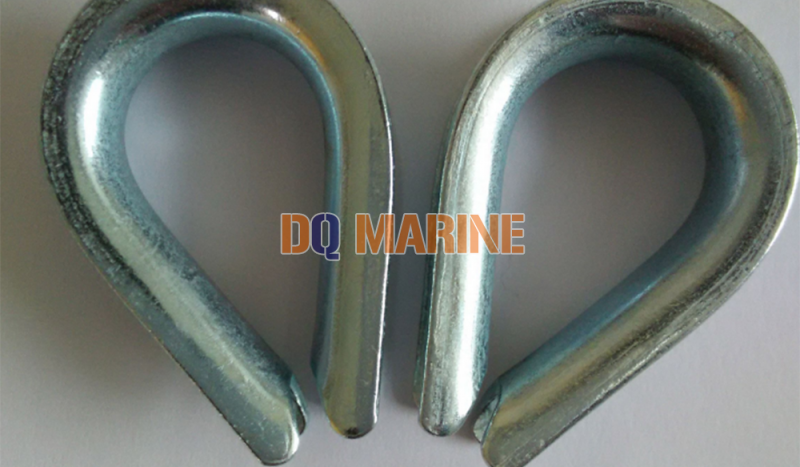

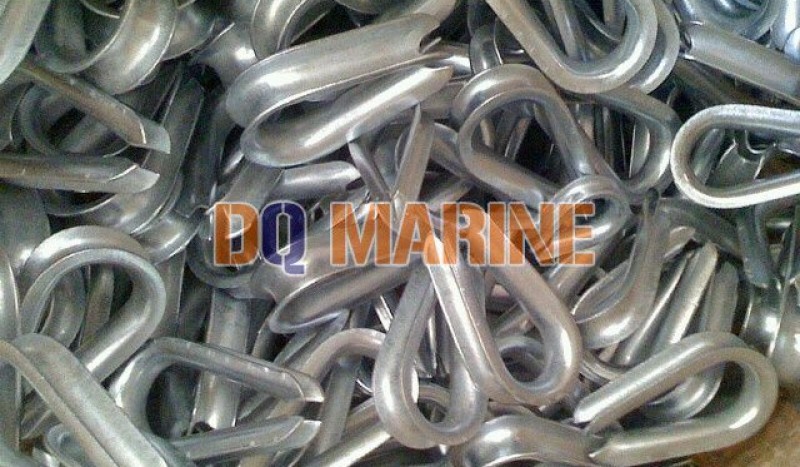

DIN 6899A Wire Rope Thimbles
Category:
Wire Rope Thimbles
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
DIN 6899A Wire Rope Thimbles:
Description

This product adopts German standard, it is constructed by sheet metal forming technology, and the material is Q235 steel, Surface can be electro galvanized or hot galvanized or sprayed plastics. The size is from 2.5mm to 28mm and the pull is from 0.5T to 20T. It is widely used to wire rope fitting.

Product Details

DIN 6899A Wire Rope Thimbles sizes table

Size (mm) Dimensions(mm) Weight 100 pcs (Ibs)
A B C D E F H
2.5 28 21.5 16 10 5 3 1 0.31
3 30 23.5 17 11 5.5 3.5 1 0.77
4 34 26.5 19 12 6 4 1 0.93
5 36 28 20 13 7 5 1 1.77
6 38 30 22 14 8 6 1 1.88
7 43 33 24 15 9 7 1.2 2.43
8 46 35 26 16 10 8 1.2 3.75
9 50 39 29 18 11 9 1.2 4.63
10 56 43 32 20 13 10 1.5 7.72
11 63 47.5 36 22 14 11 1.5 8.16
12 68 51.5 40 24 15 12 1.5 11.58
13 75 56.5 44 26 17 13 2 16
14 82 61 48 28 18 14 2 18.38
16 91 69.5 54 32 21 16.5 2.5 27.14
18 102 78 59 35 24 18 3 40.82
20 114 86.5 68 40 28 20 4 69.51
22 126 95 76 44 30 22 4 80.54
24 135 103.5 84 48 32 24 4 92.01
28 162 120.5 100 56 38 28 5 159.09
