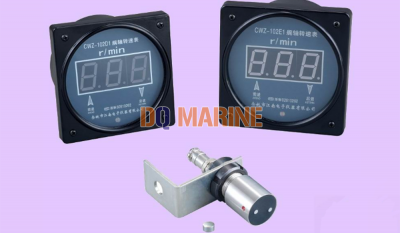

CWZ-102D1 Stern Shaft Speed Measuring System:
CWZ-102D1(E1) Stern Shaft Speed Measuring System Introduction
CWZ-102D1 (E1) stern shaft speed measuring device adopts microcomputer control, powerful detection, and reliable, accurate and visual, stable reading, Green color with green arrow means move ahead, red color with red arrow means move astern, orange color means stop.
This device adopts non-contact magnetic induction, high sensitivity, large induction distance, and the stern shaft tachometer is driven by sensor directly, maximum 3 digital tachometers can be connected.
CWZ-102D1(E1) Main Technical Parameter
Power supply: DC 24V ± 20%
Measuring range: ± 20~± 999 r/min
Sensitivity: 0.5% ± 1 word
CWZ-102D1(E1) Installation Size
CWZ-102D1 stern shaft tachometer Ф99mm, fixed thread hole size 90x90mm,4-Ф5mm.
CWZ-102E1 stern shaft tachometer Ф108mm, fixed thread hole size 96x96mm, 4-Ф7mm.
