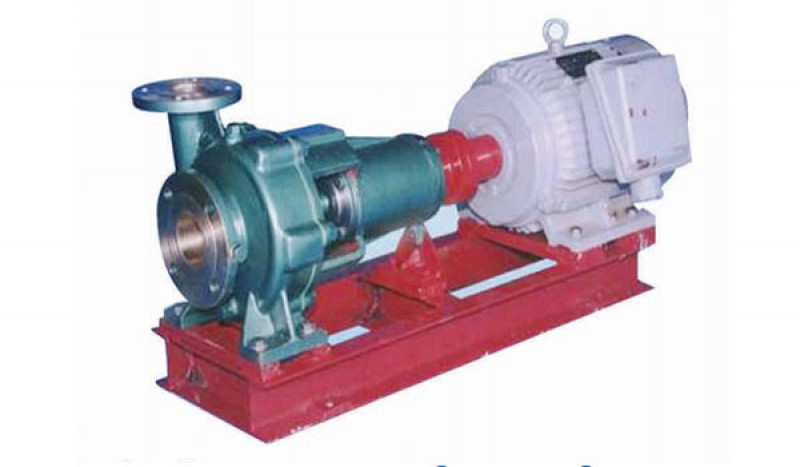

CWL Series horizontal centrifugal pump
China CWL Series horizontal centrifugal pump:
CWL series Marine horizontal centrifugal pumps are suitable for fire pump, cooling pump, sanitary pump, sewage pump and daily pump.It can be used as bilge pump when equipped with self-suction device.It can also be used in factories, mines, urban water supply and rural irrigation.
CWL Series horizontal centrifugal pump
Main Technical Data
| Model |
Flow rate Q（m³/h） |
Lift m |
Rev speed r/min |
Motor power (KW) |
| 32CWL-4 | 4 | 21 | 2950 | 1.1 |
| 32CWL-3 | 4 | 30 | 1.5 | |
| 32CWL-5 | 8 | 21 | 1.5 | |
| 40CWL-4 | 8 | 30 | 2.2 | |
| 40CWL-3 | 8 | 42 | 3 | |
| 50CWL-6 | 12 | 21 | 1.5 | |
| 50CWL-4.5 | 12 | 30 | 3 | |
| 50CWL-4 | 12 | 42 | 4 | |
| 50CWL-8 | 21 | 21 | 3 | |
| 50CWL-7 | 21 | 30 | 4 | |
| 50CWL-5 | 21 | 42 | 5.5 | |
| 50CWL-3.5 | 21 | 60 | 7.5 | |
| 65CWL-11 | 35 | 21 | 4 | |
| 65CWL-8 | 35 | 30 | 5.5 | |
| 80CWL-11 | 60 | 30 | 7.5 | |
| 80CWL-8 | 60 | 42 | 15 | |
| 80CWL-6 | 60 | 60 | 18.5 | |
| 80CWL-5.5 | 60 | 75 | 22 | |
| 100CWL-18 | 100 | 21 | 11 | |
| 100CWL-14 | 100 | 30 | 15 | |
| 100CWL-11 | 100 | 42 | 18.5 | |
| Also have bigger pumps, pls contact us for more information. | ||||
