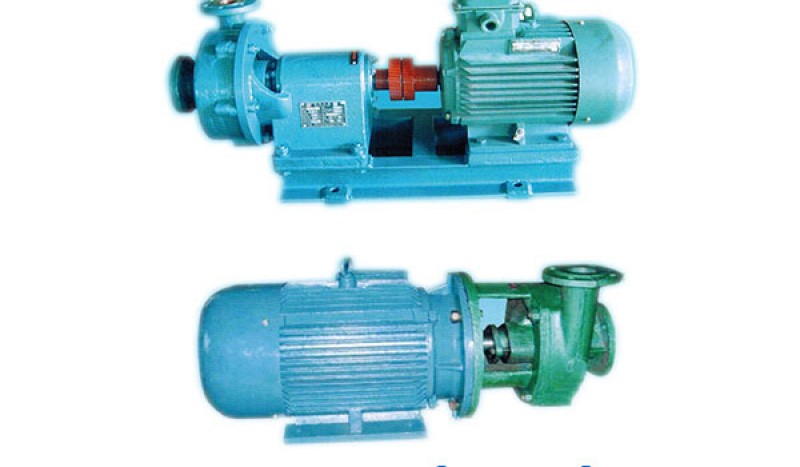

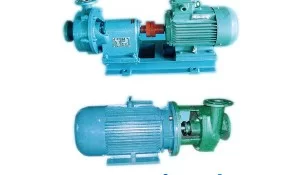

CWL/CZWL Series Marine Horizontal Centrifugal Pump
China CWL/CZWL Series Marine Horizontal Centrifugal Pump:
Model CWL/CZWL pumps are used to deliver ballast tank water of boats and ships, cool and control fire,etc. They can also used to transfer sea water to fresh water and the temperature is not exceed the 70℃. They are used for delivering fresh water,sea water and other liquids similar to water in physical and chemical qualities.
Construction of pump
Main Technical Data
| Model |
Flow rate Q m³/h |
Lift H (m) |
Rev speed r/min |
Motor power (KW) |
| 40CWL-42 | 15 | 42 | 2890 | 4 |
| 40CWL-42A | 12 | 40 | 2880 | 3 |
| 40CWL-50 | 10 | 50 | 2890 | 3 |
| 40CWL-50A | 8 | 45 | 2870 | 2.2 |
| 40CWL-60 | 10 | 60 | 2890 | 4 |
| 40CWL-60A | 8 | 55 | 2890 | 2.2 |
| 50CWL-30 | 20 | 30 | 2890 | 3 |
| 50CWL-30A | 18 | 24.5 | 2870 | 2.2 |
| 65CWL-45 | 30 | 45 | 2900 | 7.5 |
| 65CWL-45A | 27 | 37 | 2900 | 4 |
| 65CWL-65 | 25 | 65 | 2930 | 11 |
| 65CWL-65A | 21 | 58 | 2930 | 7.5 |
| 80CWL-30 | 50 | 30 | 2900 | 5.5 |
| 80CWL-30A | 45.5 | 24.5 | 2900 | 4 |
| 80CWL-35 | 50 | 45 | 2900 | 7.5 |
| 80CWL-65 | 50 | 37 | 2930 | 15 |
| 80CWL-65A | 46.5 | 65 | 2930 | 11 |
| 80CWL-65B | 44 | 58 | 25930 | 11 |
| 100CWL-30 | 100 | 30 | 2930 | 11 |
| 100CWL-30A | 90 | 25 | 2940 | 7.5 |
| 100CWL-45 | 100 | 35 | 2970 | 18.5 |
| Also have bigger pumps, pls contact us for more information. | ||||
Performance of CWL series marine horizontal centrifugal pump
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
