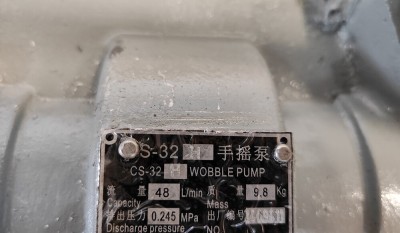

CS-32H Sea Water Marine Hand Pump
CS-32H Sea Water Marine Hand Pump
CS series hand pump is a single cylinder double acting manual piston pump. This series of piston pump f
or pumping excluding hard particles and fibers of lubricating oil, fuel oil and other lubrication oils, fresh water
and sea water.
This pump is widely used to transport all kinds of ships, oil depots, industrial vehicles, can also be used f
or supporting the pump and diesel generator.
CS-20, CS-25, CS-32 series is suitable for pumping liquid fuel, lubricating oil, water, etc..
It has the characteristics of small size, light weight, good self-priming performance, easy
installation and use. The CS series hand pumps produced in our factory are reasonable in design, exquisite in materials, simple in maintenance, and all other important parts are
treated by corrosion protection. Therefore, it is an ideal pump for ships
Data sheet:
| Model | Inlet/outlet mm | Capacity L/min | Discharge Pressure MPa | Reciprocating frequency min-¹ | Suction MPa | Acting force on handle N | Weight kg |
| CS-15Y | 15 | 10 | 0.245 | 50 | 0.03 | 132 | 4 |
| CS-15H | |||||||
| CS-20Y | 20 | 20 | 0.059 | 206 | 5.5 | ||
| CS-20H | |||||||
| CS-25Y | 25 | 32 | 240 | 7.5 | |||
| CS-25H | |||||||
| CS-32Y | 32 | 48 | 275 | 9.8 | |||
| CS-32H | |||||||
| CS-40Y | 40 | 65 | 285 | 11 | |||
| CS-40H |
