CQB-F Series Fluoroplastic Magnetic Drive Pump

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

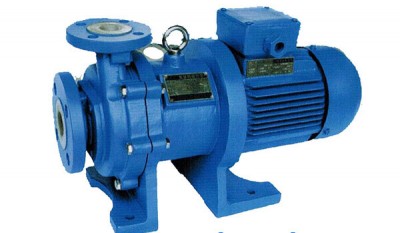

CQB-F Series Fluoroplastic Magnetic Drive Pump

Category: Marine Centrifugal Pump

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote Download Datasheet

We can supply according to your requirement.

CQB-F Series Fluoroplastic Magnetic Drive Pump

China CQB-F Series Fluoroplastic Magnetic Drive Pump:

The driving device is directly mounted on the motor shaft with active magnet coupling, and the pump chamber is completely closed. The impeller with magnet on the pump shaft is driven to rotate indirectly through magnetic coupling, which is compact in structure, safe and energy-saving.

CQB-F Series Fluoroplastic Magnetic Drive Pump

Main Technical Data

Model	Capacity m³/h	Head m	Rev speed r/min	Motor power KW
CQB16-12-50F	0.6	2	2900	0.025
CQB15-15-65F	0.8	3.2	2900	0.18
CQB20-15-75F	1.6	7	2900	0.18
CQB25-20-100F	2.5	10.5	2900	0.37
CQB32-20-110F	5.5	13	2900	0.55
CQB40-25-120F	6.3	15	2900	0.75
CQB40-40-100F	6	11	2900	0.55
CQB40-40-125F	6.5	17.5	2900	1.1
CQB50-32-125F	12	20	2900	1.5
CQB50-32-125FL	12.5	20	2900	2.2
CQB50-32-160F	12.5	32	2900	4
CQB50-32-200F	12.5	50	2900	7.5
CQB65-50-150F	20	25	2900	4
CQB65-50-160F	17.5	32	2900	4
CQB65-50-180F	8	38	2900	5.5
CQB65-40-200FL	25	50	2900	11
CQB80-65-160FL	50	32	2900	11
CQB80-50-200FL	50	50	2900	18.5
CQB100-80-160FL	100	32	2900	22
Also have bigger pumps, pls contact us for more information.
